The following alphabetical list of options provides all the information you should need to use each option effectively.
How to read the syntax information:
Hint: If you are just looking up an option to find the exact name or syntax, an easy way to choose options without typing them in is to use the xxlf command. This features a point-and-click interface to different categories of compiler options. See Figure 16.

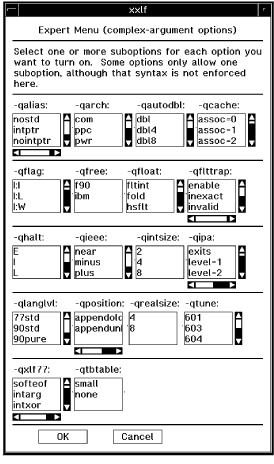

Figure 16. An Alphabetized List of Options in the xxlf Application
Syntax:
-#
Generates information on the progress of the compilation, without actually running the individual components.
Rules:
At the points where the compiler executes commands to perform different compilation steps, this option displays a simulation of the system calls it would do and the system argument lists it would pass, without actually performing these actions.
Examining the output of this option can help you to determine quickly and safely, for a particular compilation, the following information:
It avoids the overhead of compiling the source code, and avoids overwriting any existing files, such as .lst files. (For those who are familiar with the make command, it is similar to make -n.)
Note that if you specify this option with -qipa, the compiler does not display linker information subsequent to the IPA link step. This is because the compiler does not actually call IPA.
Related Information:
The -v Option produces the same output, but also performs the compilation.
Syntax:
-1 ONETRIP | NOONETRIP
Executes each DO loop in the compiled program at least once if its DO statement is executed, even if the iteration count is 0. This option provides compatibility with FORTRAN 66. The default is to follow the behavior of later Fortran standards, where DO loops are not performed if the iteration count is 0.
Restrictions:
It has no effect on FORALL statements or constructs, or array constructor implied-DO loops.
Related Information:
-qonetrip is the long form of -1.
Syntax:
-Bprefix
Determines a substitute path name for executable files used during compilation, such as the compiler or linker. It can be used in combination with the -t option, which determines which of these components are affected by -B.
Arguments:
prefix is the name of a directory where the alternative executable files reside. It must end in a / (slash).
Rules:
To form the complete path name for each component, the driver program adds prefix to the standard program names. You can restrict the components that are affected by this option by also including one or more -tmnemonic options.
You can also specify default path names for these commands in the configuration file.
This option allows you to keep multiple levels of some or all of the XL Fortran components, or try out an upgraded component before installing it permanently. When keeping multiple levels of XL Fortran available, you might want to put the appropriate -B and -t options into a configuration-file stanza, then use the -F option to select the stanza to use.
Examples
In this example, an earlier level of the XL Fortran components is installed in the directory /usr/lpp/xlf/bin. To test the upgraded product before making it available to everyone, the system administrator restores the latest install image under the directory /home/jim and then tries it out with commands similar to:
xlf95 -tc -B/home/jim/usr/lpp/xlf/bin/ test_suite.f
Once the upgrade meets the acceptance criteria, the system administrator installs it over the old level in /usr/lpp/xlf/bin.
Related Information:
See -t Option, -F Option, Customizing the Configuration File, and Running Two Levels of XL Fortran.
Syntax:
-b64
AIX 4.3 provides 64-bit shared object files in both libc.a and libm.a. In 64-bit mode, you can use the -b64 linker option to instruct ld to bind with 64-bit objects.
This option is only available on AIX Version 4.3 and above.
Related Information:
For more information on the 64-bit environment, see Chapter 6. Using XL Fortran in a 64-bit Environment. For more information on -b64, see AIX General Programming Concepts.
Syntax:
These options are only available on AIX Version 4.2 and above.
-bdynamic | -bshared | -bstatic
These options are toggles that are used to control the processing of -l options and the way that shared objects are processed.
The options -bdynamic and -bshared are synonymous.
When -bstatic is in effect, shared objects are statically linked into the output file. When -bdynamic is in effect, shared objects are linked dynamically.
When -brtl is used in conjunction with either -bdynamic or -bshared, the search for libraries specified with the -l option is satisfied by the suffix .so or .a. For each directory searched, a file with the suffix .so is looked for. If it is not found, then a file with the suffix .a is looked for. If neither file is found, then the search continues with the next directory.
Rules:
These options are passed directly to the ld command, and are not processed by XL Fortran at all.
These options are position-significant. They affect all files that are specified after the option, on the command-line.
Figure 17 summarizes how these options interact with -brtl
and -bnortl to affect the file suffix that is being searched.
Figure 17. Interaction of New Linker Options
| Position-significant | |||
|---|---|---|---|
-bdynamic -bshared (default) | -bstatic | ||
| Global Influence | -brtl |
.a | .a |
| -bnortl (default) | .a | .a | |
Examples
xlf95 f.f -brtl -bshared -lmylib
In this case, the linker searches for the library libmylib.so first, and then the library libmylib.a in each directory in the search path consecutively, until either is encountered.
xlf95_r f.f -bdynamic -llib1 -bstatic -llib2 -brtl
In this case, the linker searches for the library liblib1.so first, and then the library liblib1.a in each directory (as described in the previous example), to satisfy the first library specification. However, at the same time the linker only searches for liblib2.a in those same libraries.
Related Information:
For more information on these options, see AIX General Programming Concepts. See also, -brtl Option.
Syntax:
-bhalt:error_level
Specifies the maximum error level that is allowed before the linker (ld) command halts. The default value is 4, as specified in the configuration file. If any linker command has an error return value greater than the value that is specified by the error_level variable, linking stops.
Rules:
This option is passed directly to the ld command, and is not processed by XL Fortran at all.
Syntax:
-bloadmap:name
Requests that a log of linker actions and messages be saved in file name. You can use the log to help diagnose linking problems. For example, the log contains information about type mismatches that the -qextchk option detected.
Rules:
This option is passed directly to the ld command, and is not processed by XL Fortran at all.
Syntax:
-bmaxdata:bytes -bmaxstack:bytes
Specifies the maximum amount of space to reserve for the program data segment and stack segment, for programs where the size of these regions is a constraint.
Background Information:
The data segment holds, among other things, heap storage that is used by the program.
If your program allocates large arrays, statically or dynamically, specify -bmaxdata when linking the program. The resulting executable program uses the large data model and can have a data region larger than a single segment, up to a maximum of 2 GB. Refer to the ld documentation in the AIX Commands Reference for allowable values. Note that since the compiler might create temporary arrays during compilation, it may be useful to define a value for the -bmaxdata compiler option in anticipation of this.
If the program has large amounts of automatic data, or otherwise exceeds the soft limit on stack size for a program, specify -bmaxstack to define the soft limit up to 256 MB (for 32-bit mode), or up to the limit imposed by system resources (for 64-bit mode), when you link the program. However, each main program or subprogram is limited to 256 MB per instance.
Arguments:
You can specify the size as a decimal, octal (which is prefixed by 0), or hexadecimal value (which is prefixed by 0x).
Rules:
These options are passed directly to the ld command, and are not processed by XL Fortran at all.
Examples
xlf95 -O3 -qhot -bmaxdata:0x20000000 huge_data_model.f xlf95 -O3 -qhot -bmaxstack:2000000 lots_of_automatic_data.f
Related Information:
For a discussion of the issues involved in creating large AIX programs, see "Large Program Support Overview" in AIX General Programming Concepts.
Syntax:
This option is only available on AIX Version 4.2 and above.
-brtl | -bnortl
Determines which algorithm will be used to find libraries (that are specified with the -l option).
Background Information:
If -brtl is specified, run-time linking is enabled.
When used in conjunction with either -bdynamic or -bshared, the search for libraries that you specified with the -l option is satisfied by the suffix .so or .a. For each directory searched, a file with the suffix .so is looked for. If it is not found, then a file with the suffix .a is looked for. If neither file is found, then the search continues with the next directory. Figure 17 gives a graphical representation of how these options combine to affect the file suffix being searched for.
Rules:
These options are passed directly to the ld command, and are not processed by XL Fortran at all. Only the last specified of these options will be used. These options have a global effect; regardless of where they appear on the command-line, they affect the entire command.
Examples
xlf95 -brtl f.f -lmylib xlf95_r -bnortl f.f -bdynamic -llib1 -bstatic -llib2
Note that if you add -brtl to the end of the last example, it will override the earlier occurrence of -bnortl.
Related Information:
For more information on these options, see AIX General Programming Concepts. See also, -bdynamic, -bshared, and -bstatic Options.
Related Information:
See -bdynamic, -bshared, and -bstatic Options.
Related Information:
See -bdynamic, -bshared, and -bstatic Options.
Syntax:
-C CHECK | NOCHECK
Checks each reference to an array element, array section, or character substring for correctness.
Rules:
At compile time, if the compiler can determine that a reference goes out of bounds, the severity of the error reported is increased to S (severe) when this option is specified.
At run time, if a reference goes out of bounds, the program generates a SIGTRAP signal. By default, this signal ends the program and produces a core dump.
Because the run-time checking can slow execution, you should decide which is the more important factor for each program: the performance impact, or the possibility of incorrect results if an error goes undetected. You might decide to use this option only while testing and debugging a program (if performance is more important) or also for compiling the production version (if safety is more important).
Related Information:
The -C option prevents some of the optimizations that the -qhot Option performs. You may want to remove the -C option after debugging of your code is complete, and then add the -qhot option to achieve a more thorough optimization.
The valid bounds for character substring expressions differ depending on the setting of the -qzerosize option. See -qzerosize Option.
-qsigtrap Option and Installing an Exception Handler describe how to detect and recover from SIGTRAP signals without ending the program.
-qcheck is the long form of -C.
Syntax:
-c
Prevents the completed object file from being sent to the ld command for link-editing. With this option, the output is a .o file for each source file.
Using the -o option in combination with -c selects a different name for the .o file. In this case, you can only compile one source file at a time.
Related Information:
See -o Option.
Syntax:
-D DLINES | NODLINES
Specifies whether the compiler compiles fixed-form lines with a D in column 1 or treats them as comments.
If you specify -D, the fixed-form lines that have a D in column 1 are compiled. The default action is to treat these lines as comment lines. They are typically used for sections of debugging code that need to be turned on and off.
Related Information:
-qdlines is the long form of -D.
Syntax:
-d
Causes preprocessed source files that are produced by cpp to be kept rather than to be deleted.
Rules:
The files that this option produces have names of the form Ffilename.f, derived from the name of the original source files.
Related Information:
See Passing Fortran Files through the C Preprocessor.
Syntax:
-Fconfig_file | -Fconfig_file:stanza | -F:stanza
Specifies an alternative configuration file, which stanza to use within the configuration file, or both.
The configuration file specifies different kinds of defaults, such as options for particular compilation steps and the locations of various files that the compiler requires. A default configuration file (/etc/xlf.cfg) is supplied at installation time. The default stanza depends on the name of the command used to invoke the compiler (xlf90, xlf90_r, xlf90_r7, xlf95, xlf95_r, xlf95_r7, xlf, xlf_r, xlf_r7, or f77).
A simple way to customize the way the compiler works, as an alternative to writing complicated compilation scripts, is to add new stanzas to /etc/xlf.cfg, giving each stanza a different name and a different set of default compiler options. You may find the single, centralized file easier to maintain than many scattered compilation scripts and makefiles.
By running the compiler with an appropriate -F option, you can select the set of options that you want. You might have one set for full optimization, another set for full error checking, and so on.
Restrictions:
Because the default configuration file is replaced each time a new compiler release is installed, make sure to save a copy of any new stanzas or additional compiler options that you add.
Examples
# Use stanza debug in /etc/xlf.cfg xlf95 -F:debug t.f # Use stanza xlf90 in /home/fred/xlf.cfg xlf95 -F/home/fred/xlf.cfg t.f # Use stanza myxlf in /home/fred/xlf.cfg xlf95_r -F/home/fred/xlf.cfg:myxlf t.f
Related Information:
Customizing the Configuration File explains the contents of a configuration file and tells how to select different stanzas in /etc/xlf.cfg without using the -F option.
Syntax:
-g DBG | NODBG
Generates debug information for use by a symbolic debugger.
Related Information:
See Debugging a Fortran 90 or Fortran 95 Program, A Sample dbx Session for an XL Fortran Program, and Symbolic Debugger Support.
Syntax:
-Idir
Adds a directory to the search path for include files and .mod files. If XL Fortran calls cpp, this option adds a directory to the search path for #include files. Before checking the default directories for include and .mod files, the compiler checks each directory in the search path. For include files, this path is only used if the file name in an INCLUDE line is not provided with an absolute path. For #include files, refer to the cpp documentation for the details of the -I option.
Note that if you relied on a particular directory search order for #include files prior to XL Fortran Version 6.1, your results may now be different if you specify -I.
Arguments:
dir must be a valid path name (for example, /home/dir, /tmp, or ./subdir).
Rules:
The compiler appends a / to the dir and then concatenates that with the file name before making a search. If you specify more than one -I option on the command line, files are searched in the order of the dir names as they appear on the command line.
The following directories are searched, in this order, after any paths that are specified by -I options:
Related Information:
The -qmoddir Option puts .mod files in a specific directory when you compile a file that contains modules.
Syntax:
-k FREE(F90)
Specifies that the program is in Fortran 90 free form.
Applicable Product Levels:
The meaning of this option has changed from XL Fortran Version 2. To get the old behavior of -k, use the option -qfree=ibm instead.
Related Information:
See -qfree Option and "Fortran 90 Free Source Form" in the XL Fortran for AIX Language Reference .
This option is the short form of -qfree=f90.
Syntax:
-Ldir
Looks in the specified directory for libraries that are specified by the -l option. If you use libraries other than the default ones in /usr/lib, you can specify one or more -L options that point to the locations of the other libraries. You can also set the LIBPATH environment variable, which lets you specify a search path for libraries at run time.
Rules:
This option is passed directly to the ld command, and is not processed by XL Fortran at all.
Related Information:
See Options That Control Linking and Linking XL Fortran Programs.
Syntax:
-lkey
Searches the specified library file, where key selects the file libkey.a.
Rules:
This option is passed directly to the ld command, and is not processed by XL Fortran at all.
Related Information:
See Options That Control Linking and Linking XL Fortran Programs.
Syntax:
-NSbytes SPILLSIZE(bytes)
Specifies the size of internal program storage areas.
Rules:
It defines the number of bytes of stack space to reserve in each subprogram, in case there are too many variables to hold in registers and the program needs temporary storage for register contents.
Defaults
By default, each subprogram stack has 512 bytes of spill space reserved.
If you need this option, a compile-time message informs you of the fact.
Related Information:
-qspillsize is the long form of -NS.
Syntax:
-O[level] OPTimize[(level)] | NOOPTimize
Specifies whether to optimize code during compilation and, if so, at which level:
Arguments:
This level of optimization also affects the setting of the -qfloat option, turning on the fltint and rsqrt suboptions by default, and sets -qmaxmem=-1.
-O4 implies the following other options:
Note that the auto setting of -qarch, -qtune, and -qcache implies that the execution environment will be the same as the compilation environment.
This option follows the "last option wins" conflict resolution rule, so any of the options that are modified by -O4 can be subsequently changed. Specifically, specifying the following still allows aggressive intraprocedural optimization, while maintaining code portability:
-O4 -qarch=com
Restrictions:
Increasing the level of optimization may or may not result in additional performance improvements, depending on whether the additional analysis detects any further optimization opportunities.
Compilations with optimization may require more time and machine resources than other compilations.
The more the compiler optimizes a program, the more difficult it is to debug the program with a symbolic debugger.
Related Information:
-qstrict Option shows how to turn off the effects of -O3 that might change the semantics of a program.
-qipa Option, -qhot Option, and -qpdf Option turn on additional optimizations that may improve performance for some programs.
Chapter 8. Optimizing XL Fortran Programs discusses technical details of the optimization techniques the compiler uses, and some strategies you can use to get maximum performance from your code.
-qOPTimize is the long form of -O.
Syntax:
-o name
Specifies a name for the output object, executable, or assembler source file.
To choose the name for an object file, use this option in combination with the -c option. For an assembler source file, use it in combination with the -S option.
Defaults
The default name for an executable file is a.out. The default name for an object or assembler source file is the same as the source file, but with a .o or .s extension.
Rules:
This option is passed directly to the ld command instead of being processed by XL Fortran, except if the -c or -S option is specified.
Examples
xlf95 t.f # Produces "a.out" xlf95 -c t.f # Produces "t.o" xlf95 -o test_program t.f # Produces "test_program" xlf95 -S -o t2.s t.f # Produces "t2.s"
Syntax:
-P{v|k}[!]
Invokes the selected optimizing preprocessor. Adding ! prevents the compilation step from following preprocessing.
You can specify only one of these preprocessor options on the command line:
Examples
This example shows sets of preprocessor options that perform a reasonable amount of optimization:
xlf95 test.f -Pk -Wp,-r=3 -O # Reasonable set of KAP options xlf95 test.f -Pv -Wp,-ew -O # Reasonable set of VAST-2 options
This example shows how to save the preprocessed output in a file, so that you can see what transformations the preprocessors do:
# Produces KAP preprocessor output file Ploops.f xlf95 -Pk! -Wp,-f loops.f # Produces VAST-2 preprocessor output file Ploops.f xlf95 -Pv! -Wp,-o loops.f
| Note: | Because the preprocessors are not included as part of XL Fortran, you must purchase them separately for this example to work. |
Related Information:
Where to Find the Optimizing Preprocessors.
For information about other kinds of preprocessing (for conditional compilation and macro expansion), see Passing Fortran Files through the C Preprocessor.
Syntax:
-p[g]
Sets up the object file for profiling.
-p prepares the program for profiling. When you execute the program, it produces a mon.out file with the profiling information. You can then use the prof command to generate a run-time profile.
-pg is like -p, but produces more extensive statistics. Running a program compiled with -pg produces a gmon.out file, which you use with the gprof command to generate a run-time profile.
Rules:
For profiling, the compiler produces monitoring code that counts the number of times each routine is called. The compiler replaces the startup routine of each subprogram with one that calls the monitor subroutine at the start. When the program ends normally, it writes the recorded information to the mon.out or gmon.out file.
Examples
$ xlf95 -p needs_tuning.f $ a.out $ prof · profiling data · $ xlf95 -pg needs_tuning.f $ a.out $ gprof · detailed and verbose profiling data · |
Related Information:
For more information on profiling and the prof and gprof commands, see the AIX Commands Reference.
Syntax:
-Q+names | -Q-names | -Q | -Q!
Specifies whether Fortran 90 or Fortran 95 procedures are inlined, and/or particular procedures that should or should not be inlined. names is a list of procedure names that are separated by colons.
Rules:
By default, -Q only affects a procedure if both the caller and callee are in the same source file or set of files that are connected by INCLUDE directives. To turn on inline expansion for calls to procedures in different source files, you must also use the -qipa option.
Arguments:
The -Q option without any list inlines all appropriate procedures, subject to limits on the number of inlined calls and the amount of code size increase as a result. +names specifies the names, separated by colons, of procedures to inline, and raises these limits for those procedures. -names specifies the names, separated by colons, of procedures not to inline. You can specify more than one of these options to precisely control which procedures are most likely to be inlined.
The -Q! option turns off inlining.
Restrictions:
You must specify at least level 2 of -O for -Q inlining to take effect.
If you specify inlining for a file, the following @PROCESS compiler directives are only effective if they come before the first compilation unit in the file: ALIAS, ALIGN, ATTR, COMPACT, DBG, EXTCHK, EXTNAME, FLOAT, FLTTRAP, HALT, IEEE, LIST, MAXMEM, OBJECT, OPTIMIZE, PHSINFO, SPILLSIZE, STRICT, and XREF.
Examples
xlf95 -O -Q many_small_subprogs.f # Compiler decides what to inline xlf95 -O -Q+bigfunc:hugefunc test.f # Inline these even though they are big xlf95 -O -Q -Q-only_once pi.f # Inline except for this one procedure
Related Information:
See -qipa Option.
Related Information:
See -q32 Option.
Related Information:
See -q64 Option.
Syntax:
-qalias={[no]aryovrlp | [no]intptr | [no]std}...
ALIAS( {[NO]ARYOVRLP | [NO]INTPTR | [NO]STD}... )
Indicates whether a program contains certain categories of aliasing. The compiler limits the scope of some optimizations when there is a possibility that different names are aliases for the same storage locations.
Arguments:
Rules:
An alias exists when an item in storage can be referred to by more than one name. The Fortran 90 and Fortran 95 standards allow some types of aliasing, and disallow some others. The sophisticated optimizations that the XL Fortran compiler performs increase the likelihood of undesirable results when nonstandard aliasing is present, as in the following situations:
Applicable Product Levels:
-qalias=nostd replaces the option -qxflag=xalias and makes it obsolete.
The introduction of the -qipa option does not remove the need for -qalias.
Examples of aryovrlp/noaryovrlp
@PROCESS ALIAS(NOARYOVRLP)
! The assertion that no array assignments involve overlapping
! arrays allows the assignment to be done without creating a
! temporary array.
program test
real(8) a(100)
integer :: j=1, k=50, m=51, n=100
a(1:50) = 0.0d0
a(51:100) = 1.0d0
! Timing loop to achieve accurate timing results
do i = 1, 1000000
a(j:k) = a(m:n) ! Here is the array assignment
end do
print *, a
end program
If most array assignments in a compilation unit involve arrays that do not overlap, but a few assignments do involve storage-associated arrays, you can code the overlapping assignments with an extra step so that the NOARYOVRLP suboption is still safe to use.
! We cannot assert that this unit is free
! of array-assignment aliasing because of the assignments below.
subroutine sub1
integer a(10), b(10)
equivalence (a, b(3))
a = b ! a and b overlap.
a = a(10:1:-1) ! The elements of a are reversed.
end subroutine
! When the overlapping assignment is recoded to explicitly use a
! temporary array, the array-assignment aliasing is removed.
! Although ALIAS(NOARYOVRLP) does not speed up this assignment,
! subsequent assignments of non-overlapping arrays in this unit
! are optimized.
@PROCESS ALIAS(NOARYOVRLP)
subroutine sub2
integer a(10), b(10), t(10)
equivalence (a, b(3))
t = b; a = t
t = a(10:1:-1); a = t
end subroutine
CALL SUB1(I,I)
...
SUBROUTINE SUB1(J,K)
When SUB1 is called, an alias exists between J and K. J and K refer to the same item in storage. In Fortran, this aliasing is not permitted if J or K are updated, and, if left undetected, can have unpredictable results. If you specify -qalias=nostd, changes to J alter the value of K and vice versa, and the results are predictable.
INTEGER BIG(1000)
INTEGER SMALL(10)
COMMON // BIG
EQUIVALENCE(BIG,SMALL)
...
BIG(500) = 5
SMALL (I) = 6 ! Where I has the value 500
J = BIG(500)
In the preceding example, the program might store 5 instead of 6 into J, unless -qalias=nostd indicates that an alias might exist.
Restrictions:
Because this option inhibits some optimizations of some variables, using it can lower performance.
Programs that contain nonstandard or integer POINTER aliasing may produce incorrect results if you do not compile them with the correct -qalias settings. The xlf90, xlf90_r, xlf90_r7, xlf95, xlf95_r, and xlf95_r7 commands assume that a program contains only standard aliasing (-qalias=aryovrlp:std:nointptr), while the xlf_r, xlf_r7, xlf, and f77 commands, for compatibility with XL Fortran Version 2, assume that integer POINTERs may be present (-qalias=aryovrlp:std:intptr).
Syntax:
-qalign=[no]4k ALIGN([NO]4K)
Specifies the alignment of data objects in storage, to avoid performance problems with misaligned data. Currently, this option is mainly useful in combination with logical volume I/O and disk striping, and is very important for achieving performance gains with these types of I/O.
Arguments:
Restrictions:
This option does not affect any arrays or structures with the AUTOMATIC attribute or arrays that are allocated dynamically.
Because this option may change the layout of non-sequence derived types, when compiling programs that read or write such objects with unformatted files, use the same setting for this option for all source files.
You must use -qalign=4k if you are using the I/O techniques that are described in Increasing Throughput with Logical Volume I/O and Data Striping.
Related Information:
The -qalign option does not currently do anything about alignment problems that are produced by inefficient alignment within structures and common blocks.
You can tell if an array has the AUTOMATIC attribute and is thus unaffected by -qalign=4k, by looking for the keywords AUTOMATIC or CONTROLLED AUTOMATIC in the listing of the -qattr Option. This listing also shows the offsets of data objects.
Syntax:
-qarch=architecture
Specifies what types of RISC systems the application program can be executed on. Changing the default can improve performance, but might restrict the set of machines that can run the program.
Arguments:
The choices for architecture are:
If you specify the -q64 option and -qarch=com options together, the target platform is 64-bit. The instruction set will be restricted to those instructions common to all 64-bit machines. See Chapter 6. Using XL Fortran in a 64-bit Environment for details. Also, the rndsngl suboption of the -qfloat option is automatically turned on and cannot be turned off. While this yields better performance on PowerPC systems, you may get slightly different results than if you compile with -qarch=com and -q32.
The rndsngl suboption of the -qfloat option is automatically turned on and cannot be turned off.
pwrx is a synonym for pwr2, but pwr2 is preferable.
| Note: | The -qarch setting determines the allowed choices and defaults for the -qtune setting. |
For a given application program, make sure that you specify the same -qarch setting when you compile each of its source files. Although the linker and loader may detect object files that are compiled with incompatible -qarch settings, you should not rely on it.
Use these guidelines to help you decide whether to use this option:
Related Information:
See Compiling for POWER3, POWER2, or PowerPC Systems, -qtune Option, and -qcache Option.
Syntax:
-qassert={
deps | nodeps |
itercnt=n}
Provides information about the characteristics of the files that can help to fine-tune optimizations.
Arguments:
Related Information:
See Cost Model for Loop Transformations for background information and instructions for using these assertions. See also the description of the ASSERT directive in the XL Fortran for AIX Language Reference.
Syntax:
-qattr[=full] | -qnoattr ATTR[(FULL)] | NOATTR
Specifies whether to produce the attribute component of the attribute and cross-reference section of the listing.
Arguments:
If you specify only -qattr, only identifiers that are used are reported. If you specify -qattr=full, all identifiers, whether referenced or not, are reported.
If you specify -qattr after -qattr=full, the full attribute listing is still produced.
You can use the attribute listing to help debug problems caused by incorrectly specified attributes, or as a reminder of the attributes of each object while writing new code.
Related Information:
See Options That Control Listings and Messages, and Attribute and Cross-Reference Section.
Syntax:
-qautodbl=setting AUTODBL(setting)
Compatibility Benefits
Provides an automatic means of converting single-precision floating-point calculations to double-precision, and converting double-precision calculations to extended-precision.
You might find this option helpful in porting code where storage relationships are significant and different from the XL Fortran defaults. For example, programs that are written for the IBM VS FORTRAN compiler may rely on that compiler's equivalent option.
Performance Benefits
Although the POWER and POWER2 floating-point units perform REAL(4) calculations internally using fast REAL(8) arithmetic, it is often better to have these calculations done entirely using data entities that are REAL(8) or DOUBLE PRECISION. If the calculations are coded using REAL or REAL(4) data entities, the REAL(4)-REAL(8)-REAL(4) conversions take away the extra precision and range, and lessen performance, even though the intermediate calculations are done in IEEE double-precision.
Suboptions
The -qautodbl suboptions offer different strategies to preserve storage relationships between objects that are promoted or padded, and those that are not.
The settings you can use are as follows:
This suboption requires the libxlfpmt4.a library during linking.
This suboption requires the libxlfpmt8.a library during linking.
This suboption requires the libxlfpmt4.a and libxlfpmt8.a libraries during linking.
This suboption requires the libxlfpmt4.a and libxlfpad.a libraries during linking.
This suboption requires the libxlfpmt8.a and libxlfpad.a libraries during linking.
This suboption requires the libxlfpmt4.a, libxlfpmt8.a, and libxlfpad.a libraries during linking.
Linking
If the appropriate -qautodbl option is specified during linking, the program is automatically linked with the necessary extra libraries. Otherwise, you must link them in manually.
Usage
By using dbl4 or dblpad4, you can increase the size of REAL(4) objects without turning REAL(8) objects into REAL(16)s. REAL(16) is less efficient in calculations than REAL(8) is.
The -qautodbl option handles calls to intrinsics with arguments that are promoted; when necessary, the correct higher-precision intrinsic function is substituted. For example, if single-precision items are being promoted, a call in your program to SIN automatically becomes a call to DSIN.
Restrictions:
Related Information:
For background information on promotion, padding, and storage/value relationships, and some source examples, see Implementation Details for -qautodbl Promotion and Padding.
-qrealsize Option describes another option that works like -qautodbl, but only affects items that are of default kind type and does not do any padding. If you specify both the -qrealsize and the -qautodbl options, only -qautodbl takes effect.
Linking Non-SMP Object Files Using the ld Command explains how to manually link additional libraries with object files that you compiled with -qautodbl.
Syntax:
-qcache=
{
assoc=number |
auto |
cost=cycles |
level=level |
line=bytes |
size=Kbytes |
type={C|c|D|d|I|i}
}[:...]
Specifies the cache configuration for a specific execution machine. The compiler uses this information to tune program performance, especially for loop operations that can be structured (or blocked) to process only the amount of data that can fit into the data cache.
If you know exactly what type of system a program is intended to be executed on, and that system has its instruction or data cache configured differently from the default case (as governed by the -qtune setting), you can specify the exact characteristics of the cache to allow the compiler to compute more precisely the benefits of particular cache-related optimizations.
For this option to have any effect, you must specify at least level 2 of -O, and you must include the level and type suboptions.
Guidelines
Suboptions
Other levels are possible, but are currently undefined. If a system has more than one level of cache, use a separate -qcache option to describe each level.
Restrictions:
If you specify the wrong values for the cache configuration, or run the program on a machine with a different configuration, the program may not be as fast as possible but will still work correctly. Remember, if you are not sure of the exact values for cache sizes, use a conservative estimate.
Currently, the -qcache option only has an effect when you also specify the -qhot option.
Examples
To tune performance for a system with a combined instruction and data level-1 cache, where the cache is two-way associative, 8 KB in size, and has 64-byte cache lines:
xlf95 -O3 -qhot -qcache=type=c:level=1:size=8:line=64:assoc=2 file.f
To tune performance for a system with two levels of data cache, use two -qcache options:
xlf95 -O3 -qhot -qcache=type=D:level=1:size=256:line=256:assoc=4 \
-qcache=type=D:level=2:size=512:line=256:assoc=2 file.f
To tune performance for a system with two types of cache, again use two -qcache options:
xlf95 -O3 -qhot -qcache=type=D:level=1:size=256:line=256:assoc=4 \
-qcache=type=I:level=1:size=512:line=256:assoc=2 file.f
Related Information:
See -qtune Option, -qarch Option, and -qhot Option.
Syntax:
-qcharlen=length CHARLEN(length)
Obsolete. It is still accepted, but has no effect. The maximum length for character constants and subobjects of constants is 32 767 bytes (32 KB). The maximum length for character variables is 268 435 456 bytes (256 MB) in 32-bit mode. The maximum length for character variables is 2**40 bytes in 64-bit mode. These limits are always in effect, and are intended to be high enough to avoid portability problems with programs that contain long strings.
Syntax:
-qcheck | -qnocheck CHECK | NOCHECK
-qcheck is the long form of the -C Option.
Syntax:
-qci=numbers CI(numbers)
Specifies the identification numbers (from 1 to 255) of the INCLUDE lines to process. If an INCLUDE line has a number at the end, the file is only included if you specify that number in a -qci option. The set of identification numbers that is recognized is the union of all identification numbers that are specified on all occurrences of the -qci option.
This option allows a kind of conditional compilation, because you can put code that is only sometimes needed (such as debugging WRITE statements, additional error-checking code, or XLF-specific code) into separate files and decide for each compilation whether to process them.
Examples
REAL X /1.0/ INCLUDE 'print_all_variables.f' 1 X = 2.5 INCLUDE 'print_all_variables.f' 1 INCLUDE 'test_value_of_x.f' 2 END
In this example, compiling without the -qci option simply declares X and assigns it a value. Compiling with -qci=1 includes two instances of an include file, and compiling with -qci=1:2 includes both include files.
Restrictions:
Because the optional number in INCLUDE lines is not a widespread Fortran feature, using it may restrict the portability of a program.
Related Information:
See the section on the INCLUDE directive in the XL Fortran for AIX Language Reference.
Syntax:
-qcompact | -qnocompact COMPACT | NOCOMPACT
Reduces optimizations that increase code size.
By default, some techniques the optimizer uses to improve performance may also make the program larger. For systems with limited storage, you can use -qcompact to reduce the expansion that takes place.
Rules:
With -qcompact in effect, -Q and other optimization options still work; the reductions in code size come from limiting code replication that is done automatically during optimization.
Syntax:
-qctyplss | -qnoctyplss CTYPLSS | NOCTYPLSS
Specifies whether character constant expressions are allowed wherever typeless constants may be used. This language extension might be needed when you are porting programs from other platforms.
Rules:
With -qctyplss, character constant expressions are treated as if they were Hollerith constants, and thus can be used in logical and arithmetic expressions.
Restrictions:
Examples
@process ctyplss
integer i,j
integer, parameter :: k(1) = (/97/)
character, parameter :: c(1) = (/'a'/)
i = 4hABCD ! Hollerith constant
j = 'ABCD' ! I and J have the same bit representation
! These calls are to routines in other languages.
call sub(%val('a')) ! Equivalent to "call sub(97)"
call sub(%val(1ha)) ! Equivalent to "call sub(1627389952)"
! These statements are not allowed because of the constant-array
! restriction.
! i = c // c
! i = c(1)
! i = char(k(1))
end
Related Information:
See "Hollerith Constants" in the XL Fortran for AIX Language Reference, and Passing Arguments By Reference or By Value.
Syntax:
-qdbg | -qnodbg DBG | NODBG
-qdbg is the long form of the -g Option.
Syntax:
-qddim | -qnoddim DDIM | NODDIM
Specifies that the bounds of pointee arrays are re-evaluated each time the arrays are referenced, and removes some restrictions on the bounds expressions for pointee arrays.
Rules:
By default, a pointee array can only have dimension declarators containing variable names if the array appears in a subprogram, and any variables in the dimension declarators must be dummy arguments, members of a common block, or use- or host-associated. The size of the dimension is evaluated on entry to the subprogram and remains constant during execution of the subprogram.
Examples
@PROCESS DDIM INTEGER PTE, N, ARRAY(10) POINTER (P, PTE(N)) N = 5 P = LOC(ARRAY(2)) PRINT *, PTE ! Print elements 2 through 6 ARRAY N = 7 ! Increase the size PRINT *, PTE ! Print elements 2 through 8 ARRAY END
Syntax:
-qdirective[=directive_list] | -qnodirective[=directive_list] DIRECTIVE[(directive_list)] | NODIRECTIVE[(directive_list)]
Specifies sequences of characters, known as trigger constants, that identify comment lines as compiler comment directives.
Background Information:
A directive is a line that is not a Fortran statement, but is recognized and acted on by the compiler. The compiler always recognizes some directives, such as @PROCESS. To allow you maximum flexibility, any new directives that might be provided with the XL Fortran for AIX compiler in the future will be placed inside comment lines. This avoids portability problems if other compilers do not recognize the directives.
The compiler recognizes the default trigger constant IBM*. Specification of -qsmp implies -qdirective=smp\$:\$omp:ibmp, and by default, the trigger constants SMP$, $OMP, and IBMP are also turned on. If you specify -qsmp=omp, the compiler ignores all trigger constants that you have specified up to that point, and recognizes only the $OMP trigger constant. Specification of -qthreaded implies -qdirective=ibmt, and by default, the trigger constant IBMT is also turned on.
Arguments:
The -qnodirective option with no directive_list turns off all previously specified directive identifiers; with a directive_list, it turns off only the selected identifiers.
-qdirective with no directive_list turns on the default trigger constant IBM* if it has been turned off by a previous -qnodirective.
Notes:
xlf95 -qdirective='dbg*' -qnodirective='IBM*' directives.f
Examples
@PROCESS FREE
PROGRAM DIRECTV
INTEGER A, B, C, D, E, F
A = 1 ! Begin in free form.
B = 2
!OLDSTYLE SOURCEFORM(FIXED)
! Switch to fixed form for this include file that has not
! been converted yet.
INCLUDE 'set_c_and_d.inc'
!IBM* SOURCEFORM(FREE)
E = 5 ! Back to free form.
F = 6
END
For this example, compile with the option -qdirective=oldstyle to ensure that the compiler recognizes the SOURCEFORM directive before the INCLUDE line. After converting the include file to use free form, you can compile with the -qnodirective option, and the SOURCEFORM(FIXED) directive is ignored.
Related Information:
See the section on the SOURCEFORM directive in the XL Fortran for AIX Language Reference.
As the use of incorrect trigger constants can generate warning messages or error messages or both, you should check the particular directive statement in the "Directives" chapter of the XL Fortran for AIX Language Reference for the suitable associated trigger constant.
Syntax:
-qdlines | -qnodlines DLINES | NODLINES
-qdlines is the long form of the -D Option.
Syntax:
-qdpc[=e] | -qnodpc DPC[(E)] | NODPC
Increases the precision of real constants, for maximum accuracy when assigning real constants to DOUBLE PRECISION variables. This language extension might be needed when you are porting programs from other platforms.
Rules:
If you specify -qdpc, all basic real constants (for example, 1.1) are treated as double-precision constants: the compiler preserves some digits of precision that would otherwise be lost during the assignment to the DOUBLE PRECISION variable. If you specify -qdpc=e, all single-precision constants, including constants with an e exponent, are treated as double-precision constants.
This option does not affect constants with a kind type parameter specified.
Examples
@process nodpc
subroutine nodpc
real x
double precision y
data x /1.000000000001/ ! The trailing digit is lost
data y /1.000000000001/ ! The trailing digit is lost
print *, x, y, x .eq. y ! So x is considered equal to y
end
@process dpc
subroutine dpc
real x
double precision y
data x /1.000000000001/ ! The trailing digit is lost
data y /1.000000000001/ ! The trailing digit is preserved
print *, x, y, x .eq. y ! So x and y are considered different
end
program testdpc
call nodpc
call dpc
end
When compiled, this program prints the following:
1.000000000 1.00000000000000000 T 1.000000000 1.00000000000100009 F
showing that with -qdpc, the extra precision is preserved.
Related Information:
-qautodbl Option and -qrealsize Option are more general-purpose options that can also do what -qdpc does. -qdpc has no effect if you specify either of these options.
Syntax:
-qdpcl | -qnodpcl DPCL | NODPCL
Generates symbols that tools based on the Dynamic Probe Class Library (DPCL) can use to see the structure of an executable file.
When you specify the -qdpcl option, the compiler emits symbols to define blocks of code in a program. You can then use tools that use the DPCL interface to examine performance information, such as memory usage, for object files that you compiled with this option.
Restrictions:
You must also specify the -g option when you specify -qdpcl. You cannot specify any of the following options when you specify -qdpcl: -qhot, -qipa, or -qsmp.
Syntax:
-qescape | -qnoescape ESCAPE | NOESCAPE
Specifies how the backslash is treated in character strings, Hollerith constants, H edit descriptors, and character string edit descriptors. It can be treated as an escape character or as a backslash character. This language extension might be needed when you are porting programs from other platforms.
Defaults
By default, the backslash is interpreted as an escape character in these contexts. If you specify -qnoescape, the backslash is treated as the backslash character.
The default setting is useful for the following:
If you are writing or porting code that depends on backslash characters being passed through unchanged, specify -qnoescape so that they do not get any special interpretation. You could also write \\ to mean a single backslash character under the default setting.
Examples
$ # Demonstrate how backslashes can affect the output
$ cat escape.f
PRINT *,'a\bcde\fg'
END
$ xlf95 escape.f
** _main === End of Compilation 1 ===
1501-510 Compilation successful for file escape.f.
$ a.out
cde
g
$ xlf95 -qnoescape escape.f
** _main === End of Compilation 1 ===
1501-510 Compilation successful for file escape.f.
$ a.out
a\bcde\fg
|
In the first compilation, with the default setting of -qescape, \b is printed as a backspace, and \f is printed as a formfeed character. With the -qnoescape option specified, the backslashes are printed like any other character.
Related Information:
The list of escape sequences that XL Fortran recognizes is shown in Figure 31.
Syntax:
-qextchk | -qnoextchk EXTCHK | NOEXTCHK
Sets up type-checking information for common blocks, procedure definitions, procedure references, and module data. Later, the linker can detect mismatches across compilation units by using this information.
Rules:
At compile time, -qextchk verifies the consistency of procedure definitions and references and module data.
At link time, -qextchk verifies that actual arguments agree in type, shape, passing mode, and class with the corresponding dummy arguments, and that declarations of common blocks and modules are consistent.
Syntax:
-qextern=names
Allows user-written procedures to be called instead of XL Fortran intrinsics. names is a list of procedure names separated by colons. The procedure names are treated as if they appear in an EXTERNAL statement in each compilation unit being compiled. If any of your procedure names conflict with XL Fortran intrinsic procedures, use this option to call the procedures in the source code instead of the intrinsic ones.
Arguments:
Separate the procedure names with colons.
Applicable Product Levels:
Because of the many Fortran 90 and Fortran 95 intrinsic functions and subroutines, you might need to use this option even if you did not need it for FORTRAN 77 programs.
Examples
SUBROUTINE GETENV(VAR)
CHARACTER(10) VAR
PRINT *,VAR
END
CALL GETENV('USER')
END
Compiling this program with no options fails because the call to GETENV is actually calling the intrinsic subroutine, not the subroutine defined in the program. Compiling with -qextern=getenv allows the program to be compiled and run successfully.
Syntax:
-qextname | -qnoextname EXTNAME | NOEXTNAME
Adds an underscore to the names of global entities, to help port programs from systems where this is a convention for mixed-language programs.
The name of a main program is not affected.
The -qextname option helps to port mixed-language programs to XL Fortran without modifications. Use of this option avoids naming problems that might otherwise be caused by:
| Note: | XL Fortran Service and Utility Procedures, such as flush_ and dtime_, have these underscores in their names already. By compiling with the -qextname option, you can code the names of these procedures without the trailing underscores. |
If your program has only a few instances of the naming problems that -qextname solves, you may prefer to select new names with the -brename option of the ld command.
Restrictions:
You must compile all the source files for a program, including the source files of any required module files, with the same -qextname setting.
Examples
@PROCESS EXTNAME
SUBROUTINE STORE_DATA
CALL FLUSH(10) ! Using EXTNAME, we can drop the final underscore
END SUBROUTINE
Special Note
If you use the xlfutility module to ensure that the Service and Utility subprograms are correctly declared, you must change the name to xlfutility_extname when compiling with -qextname.
Related Information:
This option also affects the names that are specified in some other options, so that you do not have to include underscores in their names on the command line: -qextern Option, -Q Option, -qsigtrap Option.
Syntax:
-qfdpr | -qnofdpr
Provides object files with information that the AIX Feedback Directed Program Restructuring (fdpr) performance-tuning utility needs to optimize the resulting executable file.
Restrictions:
The fdpr performance-tuning utility has its own set of restrictions, and is not guaranteed to speed up all programs or produce executables that produce exactly the same results as the original programs.
If you use the -qfdpr compiler option, only those object files that are built with this flag will be reordered. Therefore, if you use -qfdpr, you should use it for all object files in a program. Static linking will not improve performance if you use the -qfdpr compiler option.
When you use -qfdpr on some of the objects that are built into an executable, fdpr will only perform some optimizations on the objects that are built with fdpr. This can mean that fdpr has less benefit on programs compiled using -qfdpr, because library code is not optimized (since it has not been compiled with -qfdpr).
The optimizations that the fdpr command performs are similar to those that the -qpdf option performs.
Related Information:
For more information, see the fdpr man page, and the AIX Commands Reference.
Syntax:
-qfixed[=right_margin] FIXED[(right_margin)]
Indicates that the input source program is in fixed form, and optionally specifies the maximum line length.
The source form specified when executing the compiler applies to all of the input files, although you can switch the form for a compilation unit by using a FREE or FIXED @PROCESS directive, or for the rest of the file by using a SOURCEFORM comment directive (even inside a compilation unit).
For source code from some other systems, you may find you need to specify a right margin larger than the default. This option allows a maximum right margin of 132.
Defaults
-qfixed=72 is the default for the xlf, xlf_r, xlf_r7, and f77 commands. -qfree=f90 is the default for the xlf90, xlf90_r, xlf90_r7, xlf95, xlf95_r, and xlf95_r7 commands.
Related Information:
See -qfree Option.
For the precise specifications of this source form, see "Fixed Source Form" in the XL Fortran for AIX Language Reference.
Syntax:
-qflag=listing_severity:terminal_severity FLAG(listing_severity,terminal_severity)
You must specify both listing_severity and terminal_severity.
Limits the diagnostic messages to those of a specified level or higher. Only messages with severity listing_severity or higher are written to the listing file. Only messages with severity terminal_severity or higher are written to the terminal. -w is a short form for -qflag=e:e.
Arguments:
The severity levels (from lowest to highest) are:
The -qflag option overrides any -qlanglvl, or -qsaa options specified.
Defaults
The default for this option is i:i, so that you do not miss any important informational messages.
Related Information:
See -qlanglvl Option, and Understanding XL Fortran Error Messages.
Syntax:
-qfloat=options FLOAT(options)
Selects different strategies for speeding up or improving the accuracy of floating-point calculations.
This option replaces several separate options. You should use it instead of -qfold, -qmaf, or related options for any new code.
You should be familiar with the information in Chapter 7. XL Fortran Floating-Point Processing and the IEEE standard before attempting to change any -qfloat settings.
Defaults
The default setting uses the suboptions nofltint, fold, nohsflt, nohssngl, maf, nonans, norndsngl, norrm, and norsqrt. Some options change this default, as explained below.
The default setting of each suboption remains in effect unless you explicitly change it. For example, if you select -qfloat=nofold, the settings for nohsflt, nohssngl, or related options are not affected.
Arguments:
The available suboptions each have a positive and negative form, such as fold and nofold, where the negative form is the opposite of the positive.
The suboptions are as follows:
| Note: | If a program converts a floating-point value that is outside the representable range of integers, it produces undefined results because the error condition is not detected. |
Although this suboption is turned off by default, it is turned on by the -O3 optimization level unless you also specify -qstrict.
| Note: | This suboption is intended for specific applications in which floating-point calculations have known characteristics. In particular, all floating-point results must be within the defined range of representation of single precision. The use of this option when compiling other application programs may produce incorrect results without warning. See Technical Details of the -qfloat=hsflt Option for details. |
This setting is always in effect for programs that you compile with -qarch=ppc, because of the way the PowerPC floating-point unit works. The rndsngl suboption is also turned on if you specify -q64 and -qarch=com together.
Although this suboption is turned off by default, specifying -O3 turns it on, unless you also specify -qstrict.
Syntax:
-qflttrap[=suboptions] | -qnoflttrap FLTTRAP[(suboptions)] | NOFLTTRAP
Determines what types of floating-point exception conditions to detect at run time. The program receives a SIGTRAP signal when the corresponding exception occurs.
Arguments:
Defaults
The -qflttrap option without suboptions is equivalent to -qflttrap=ov:und:zero:inv:inex. However, because this default does not include enable, it is probably only useful if you already use fpsets or similar subroutines in your source. If you specify -qflttrap more than once, both with and without suboptions, the -qflttrap without suboptions is ignored.
On AIX Version 4.1, if you use -qflttrap=inv:en to compile a program containing an IEEE invalid SQRT operation, and then run that program, the expected SIGTRAP signal may not occur on PowerPC machines and does not occur at all on POWER machines.
You can only fix this problem for AIX Version 4.2 and subsequent levels of the operating system. Specify the following command:
export SQRT_EXCEPTION=3.1
Examples
When you compile this program:
REAL X, Y, Z
DATA X /5.0/, Y /0.0/
Z = X / Y
END
with the command:
xlf95 -qflttrap=zerodivide:enable -qsigtrap divide_by_zero.f
the program stops when the division is performed.
The zerodivide suboption identifies the type of exception to guard against. The enable suboption causes a SIGTRAP signal when the exception occurs. The -qsigtrap option produces informative output when the signal stops the program.
Related Information:
See -qsigtrap Option.
See Detecting and Trapping Floating-Point Exceptions for full instructions on how and when to use the -qflttrap option, especially if you are just starting to use it.
Syntax:
-qfree[={f90|ibm}]
FREE[({F90|IBM})]
Indicates that the source code is in free form. The ibm and f90 suboptions specify compatibility with the free form defined for VS FORTRAN and Fortran 90, respectively. Note that the free form defined for Fortran 90 also applies to Fortran 95.
The source form specified when executing the compiler applies to all of the input files, although you can switch the form for a compilation unit by using a FREE or FIXED @PROCESS directive, or for the rest of the file by using a SOURCEFORM comment directive (even inside a compilation unit).
Defaults
-qfree by itself specifies Fortran 90 free form.
-qfixed=72 is the default for the xlf, xlf_r, xlf_r7, and f77 commands. -qfree=f90 is the default for the xlf90, xlf90_r, xlf90_r7, xlf95, xlf95_r, and xlf95_r7 commands.
Related Information:
See -qfixed Option.
-k is equivalent to -qfree=f90.
Fortran 90 free form is explained in "IBM Free Form" in the XL Fortran for AIX Language Reference. It is the format to use for maximum portability across compilers that support Fortran 90 and Fortran 95 features now and in the future.
IBM free form is equivalent to the free format of the IBM VS FORTRAN compiler, and is intended to help port programs from the System/370 platform. It is explained in "IBM Free Source Form" in the XL Fortran for AIX Language Reference.
Syntax:
-qfullpath | -qnofullpath
Records the full, or absolute, path names of source and include files in object files compiled with debugging information (-g option).
If you need to move an executable file into a different directory before debugging it, or have multiple versions of the source files and want to ensure that the debugger uses the original source files, use the -qfullpath option in combination with the -g option so that source-level debuggers can locate the correct source files.
Defaults
By default, the compiler records the relative path names of the original source file in each .o file. It may also record relative path names for include files.
Restrictions:
Although -qfullpath works without the -g option, you cannot do source-level debugging, unless you also specify the -g option.
Examples
In this example, the executable file is moved after being created, but the debugger can still locate the original source files:
$ xlf95 -g -qfullpath file1.f file2.f file3.f -o debug_version ... $ mv debug_version $HOME/test_bucket $ cd $HOME/test_bucket $ xldb debug_version |
Related Information:
See -g Option.
Syntax:
-qhalt=severity HALT(severity)
Stops before producing any object, executable, or assembler source files if the maximum severity of compile-time messages equals or exceeds the specified severity. severity is one of i, l, w, e, s, u, or q, meaning informational, language, warning, error, severe error, unrecoverable error, or a severity indicating "don't stop".
Arguments:
The severity levels (from lowest to highest) are:
Defaults
The default is -qhalt=s, which prevents the compiler from generating an object file when compilation fails.
The -qhalt option can override the -qobject option, and -qnoobject can override -qhalt.
Syntax:
-qhot[={arraypad[=n] | noarraypad}] | -qnohot
Determines whether to perform high-order transformations on loops and array language during optimization, and whether to pad array dimensions and data objects to avoid cache misses.
Because of the implementation of the cache architecture, array dimensions that are powers of two can lead to decreased cache utilization. The optional arraypad suboption permits the compiler to increase the dimensions of arrays where doing so might improve the efficiency of array-processing loops. If you have large arrays with some dimensions (particularly the first one) that are powers of 2, or if you find that your array-processing programs are slowed down by cache misses or page faults, consider specifying -qhot=arraypad.
You must specify at least level 2 of -O for -qhot to have any effect.
Arguments:
Because n is an integral value, we recommend that pad values be multiples of the largest array element size, typically 4, 8, or 16.
Both arraypad and arraypad=n are unsafe options: they do not perform any checking for reshaping or equivalences that may cause the code to break if padding takes place.
The -C option turns off the transformations.
Related Information:
Optimizing Loops and Array Language lists the transformations that are performed.
Syntax:
-qhsflt | -qnohsflt HSFLT | NOHSFLT
Obsolete. Replaced by the hsflt and nohsflt suboptions of the -qfloat Option.
Related Information:
Be sure to read Maximizing Floating-Point Performance and Technical Details of the -qfloat=hsflt Option for information about the intended purpose and restrictions of this option.
Syntax:
-qhssngl | -qnohssngl HSSNGL | NOHSSNGL
Obsolete. Replaced by the hssngl and nohssngl suboptions of the -qfloat Option.
Syntax:
-qieee={Near | Minus | Plus | Zero}
IEEE({Near | Minus | Plus | Zero})
Specifies the rounding mode for the compiler to use when it evaluates constant floating-point expressions at compile time.
The choices are:
This option is intended for use in combination with the XL Fortran subroutine fpsets, or some other method of changing the rounding mode at run time. It sets the rounding mode that is used for compile-time arithmetic (for example, evaluating constant expressions such as 2.0/3.5). By specifying the same rounding mode for compile-time and run-time operations, you can avoid inconsistencies in floating-point results.
| Note: | Compile-time arithmetic is most extensive when you also specify the -O option. |
If you change the rounding mode to other than the default (round-to-nearest) at run time, be sure to also specify -qfloat=rrm to turn off optimizations that only apply in the default rounding mode.
Related Information:
See Selecting the Rounding Mode, -O Option, and -qfloat Option.
Syntax:
-qinit=f90ptr INIT(F90PTR)
Makes the initial association status of pointers disassociated. Note that this applies to Fortran 95 as well as Fortran 90.
You can use this option to help locate and fix problems that are due to using a pointer before you define it.
Related Information:
See "Pointer Association" in the XL Fortran for AIX Language Reference.
Syntax:
-qinitauto[=hex_value] | -qnoinitauto
Initializes each byte or word (4 bytes) of storage for automatic variables to a specific value, depending on the length of the hex_value. This helps you to locate variables that are referenced before being defined. For example, by using both the -qinitauto option to initialize REAL variables with a NaNS value and the -qflttrap option, it is possible to identify references to uninitialized REAL variables at run time. Prior to XL Fortran Version 5.1.1, you could only use this option to initialize each byte of storage.
Setting hex_value to zero ensures that all automatic variables are cleared before being used. Some programs assume that variables are initialized to zero, and do not work when they are not. Other programs may work if they are not optimized, but fail when they are optimized. Typically, setting all the variables to all zero bytes prevents such run-time errors.
To locate and fix these errors, set the bytes to a value other than zero, which will consistently reproduce incorrect results. This method is especially valuable in cases where adding debugging statements or loading the program into a symbolic debugger makes the error go away.
Setting hex_value to FF (255) gives REAL and COMPLEX variables an initial value of "negative not a number", or -NaNQ. Any operations on these variables will also result in NaNQ values, making it clear that an uninitialized variable has been used in a calculation.
This option can help you to debug programs with uninitialized variables in subprograms: for example, you can use it to initialize REAL variables with a NaNS value. You can initialize 8-byte REAL variables to double-precision NaNS values by specifying an 8-digit hexadecimal number that, when repeated, has a double-precision NaNS value. For example, you could specify a number such as 7FF7FFFF, which, when stored in a REAL(4) variable, has a single-precision NaNS value. If the same number is stored twice in a REAL(8) variable (7FF7FFFF7FF7FFFF), it has a double-precision NaNS value.
Arguments:
Defaults
Restrictions:
Examples
The following example shows how to perform word initialization of automatic variables:
subroutine sub() integer(4), automatic :: i4 character, automatic :: c real(4), automatic :: r4 real(8), automatic :: r8 end subroutine
When you compile the code with the following option, the compiler performs word initialization, as the hex_value is longer than 2 digits:
-qinitauto=0cf
The compiler initializes the variables as follows, padding the
hex_value with zeros in the cases of the i4,
r4, and r8 variables and truncating the first
hexadecimal digit in the case of the c variable:
| Variable | Value |
|---|---|
| i4 | 000000CF |
| c | CF |
| r4 | 000000CF |
| r8 | 000000CF000000CF |
Related Information:
See -qflttrap Option and the section on the AUTOMATIC directive in the XL Fortran for AIX Language Reference.
Syntax:
-qintlog | -qnointlog INTLOG | NOINTLOG
Specifies that you can mix integer and logical data entities in expressions and statements. Logical operators that you specify with integer operands act upon those integers in a bit-wise manner, and integer operators treat the contents of logical operands as integers.
Restrictions:
The following operations do not allow the use of logical variables:
Examples
INTEGER I, MASK, LOW_ORDER_BYTE, TWOS_COMPLEMENT I = 32767 MASK = 255 ! Find the low-order byte of an integer. LOW_ORDER_BYTE = I .AND. MASK ! Find the twos complement of an integer. TWOS_COMPLEMENT = .NOT. I END
Related Information:
You can also use the intrinsic functions IAND, IOR, IEOR, and NOT to perform bitwise logical operations.
Syntax:
-qintsize=bytes INTSIZE(bytes)
Sets the size of default INTEGER and LOGICAL data entities (that is, those for which no length or kind is specified).
The specified size (2) applies to these data entities:
Allowed sizes for bytes are:
This option is intended to allow you to port programs unchanged from systems that have different default sizes for data. For example, you might need -qintsize=2 for programs that are written for a 16-bit microprocessor, or -qintsize=8 for programs that are written for a CRAY computer. The default value of 4 for this option is suitable for code that is written specifically for many 32-bit computers. Note that specifying the -q64 compiler option does not affect the default setting for -qintsize.
Restrictions:
This option is not intended as a general-purpose method for increasing the sizes of data entities. Its use is limited to maintaining compatibility with code that is written for other systems.
You might need to add PARAMETER statements to give explicit lengths to constants that you pass as arguments.
Examples
In the following example, note how variables, literal constants, intrinsics, arithmetic operators, and input/output operations all handle the changed default integer size.
@PROCESS INTSIZE(8)
PROGRAM INTSIZETEST
INTEGER I
I = -9223372036854775807 ! I is big enough to hold this constant.
J = ABS(I) ! So is implicit integer J.
IF (I .NE. J) THEN
PRINT *, I, '.NE.', J
END IF
END
The following example only works with the default size for integers:
CALL SUB(17)
END
SUBROUTINE SUB(I)
INTEGER(4) I ! But INTSIZE may change "17"
! to INTEGER(2) or INTEGER(8).
...
END
If you change the default value, you must either declare the variable I as INTEGER instead of INTEGER(4), or give a length to the actual argument, as follows:
@PROCESS INTSIZE(8)
INTEGER(4) X
PARAMETER(X=17)
CALL SUB(X) ! Use a parameter with the right length, or
CALL SUB(17_4) ! use a constant with the right kind
END
Related Information:
See -qrealsize Option, and "Type Parameters and Specifiers" in the XL Fortran for AIX Language Reference.
Syntax:
-qipa[=suboptions] -qnoipa
Enhances -O optimization by doing detailed analysis across procedures (interprocedural analysis or IPA).
You must also specify -O, -O2, -O3, or -O4 when you specify -qipa. For additional performance benefits, you can also specify the -Q option. -qipa extends the area that is examined during optimization and inlining from a single procedure to multiple procedures (possibly in different source files) and the linkage between them.
You can fine-tune the optimizations that are performed by specifying suboptions.
To use this option, the necessary steps are:
During compilation, the compiler stores interprocedural analysis information in the .o file. During linking, the -qipa option causes a complete reoptimization of the entire application.
Note that if you specify this option with -#, the compiler does not display linker information subsequent to the IPA link step. This is because the compiler does not actually call IPA.
IPA uses the following suboptions during its compile-time phase:
If compiling and linking are performed in the same step, and you do not specify the -S or any listing option, -qipa=noobject is implied.
If your program contains object files created with the noobject suboption, you must use the -qipa option to compile any files containing an entry point (the main program for an executable program, or an exported procedure for a library) before linking your program with -qipa.
IPA uses the following suboptions during its link-time phase:
The default level is 1.
Specifies an output listing file name during the link phase, in the event that an object listing has been requested using either the -qlist or the -qipa=list compiler option, and allows the user to direct the type of output. If you do not specify the filename suboption, the default file name is "a.lst".
If you specify short, the Object File Map, Source File Map, and Global Symbols Map sections are included. If you specify long, then the preceding sections appear, in addition to the Object Resolution Warnings, Object Reference Map, Inliner Report, and Partition Map sections.
If you specify the -qipa and -qlist options together, IPA generates an a.lst file that overwrites any existing a.lst file. If you have a source file named a.f, the IPA listing will overwrite the regular compiler listing a.lst. You can use the list=filename suboption to specify an alternative listing file name.
The primary use of isolated, missing, pure, safe, and unknown is to specify how much optimization can safely be performed on calls to library routines that are not compiled with -qipa.
The following compiler options have an effect on the link-time phase of -qipa:
Applicable Product Levels:
This option is similar but not identical to the -qipa option of XL Fortran Version 3. If you have makefiles that already contain the -qipa option, modify them as needed to use the new suboption names.
Examples
Here is how you might compile a set of files with interprocedural analysis:
xlf95 -O -qipa f.f xlf95 -c -O3 *.f -qipa=noobject xlf95 -o product *.o -qipa -O
Related Information:
See -O Option, -p Option, and -Q Option.
Syntax:
-qkeepparm
Background Information:
A procedure usually stores its incoming parameters on the stack at the entry point. When you compile code with -O, however, the optimizer can potentially remove the stored parameters if they are not used later in the procedure.
Specifying the -qkeepparm compiler option, prevents flushing of the register, even if it could improve performance. This option then provides access to the values of incoming parameters to tools, such as debuggers, simply by preserving those values on the stack.
Syntax:
-qlanglvl={suboptions}
LANGLVL({suboptions})
Determines which language standard (or superset or subset of a standard) to consult for nonconformance. It identifies nonconforming source code and also options that allow such nonconformances.
Rules:
The compiler issues a message with severity code L if it detects syntax that is not allowed by the language level that you specified.
Arguments:
Defaults
The default is -qlanglvl=extended. Prior to XL Fortran Version 6.1, the default was -qlanglvl=90ext. The 90ext suboption accepts the full Fortran 90 language standard, plus all extensions (now including the Fortran 95 standard), and is equivalent to extended. However, the 90ext suboption is now obsolete, and to avoid problems in the future, you should start using the extended suboption as soon as possible.
The -qflag option can override this option.
Examples
The following example contains source code that conforms to a mixture of Fortran standards:
!----------------------------------------------------------
! in free source form
program tt
integer :: a(100,100), b(100), i
real :: x, y
...
goto (10, 20, 30), i
10 continue
pause 'waiting for input'
20 continue
y= gamma(x)
30 continue
b = maxloc(a, dim=1, mask=a .lt 0)
end program
!----------------------------------------------------------
The following chart shows examples of how some -qlanglvl
suboptions affect this sample program:
| -qlanglvl Suboption Specified | Result | Reason |
|---|---|---|
| 95pure |
Flags PAUSE statement Flags computed GOTO statement Flags GAMMA intrinsic |
Deleted feature in Fortran 95 Obsolescent feature in Fortran 95 Extension to Fortran 95 |
| 95std |
Flags PAUSE statement Flags GAMMA intrinsic |
Deleted feature in Fortran 95 Extension to Fortran 95 |
| extended | No errors flagged |
|
Related Information:
See -qflag Option, -qhalt Option, and -qsaa Option.
The langlvl run-time option, which is described in Setting Run-Time Options, helps to locate run-time extensions that cannot be checked for at compile time.
Related Information:
See -qipa Option.
Related Information:
See -qipa Option.
Related Information:
See -qipa Option.
Syntax:
-qlist | -qnolist LIST | NOLIST
Specifies whether to produce the object section of the listing.
You can use the object listing to help understand the performance characteristics of the generated code, and to diagnose execution problems.
If you specify the -qipa and -qlist options together, IPA generates an a.lst file that overwrites any existing a.lst file. If you have a source file named a.f, the IPA listing will overwrite the regular compiler listing a.lst. To avoid this, use the list=filename suboption of -qipa to generate an alternative listing.
Related Information:
See Options That Control Listings and Messages, Object Section, and -S Option.
Syntax:
-qlistopt | -qnolistopt LISTOPT | NOLISTOPT
Determines whether to show the setting of every compiler option in the listing file, or only selected options. These selected options include those specified on the command line or directives, plus some that are always put in the listing.
You can use the option listing during debugging to check whether a problem occurs under a particular combination of compiler options, or during performance testing to record the optimization options in effect for a particular compilation.
Rules:
Options that are always displayed in the listing are:
Related Information:
See Options That Control Listings and Messages, and Options Section.
Syntax:
-qlm | -qnolm LM | NOLM
Disables the license management control system (LM). If you do not specify the -qnolm option, LM is enabled by default.
Use the -qnolm compiler option on the command line when compiling one program, or place the option in your configuration file (xlf.cfg) if you want LM disabled by default.
Related Information:
See Tracking Use of the Compiler.
Syntax:
-qlog4 | -qnolog4 LOG4 | NOLOG4
Specifies whether the result of a logical operation with logical operands is a LOGICAL(4), or a LOGICAL with the maximum length of the operands.
You can use this option to port code that was originally written for the IBM VS FORTRAN compiler.
Arguments:
-qlog4 makes the result always a LOGICAL(4), while -qnolog4 makes it depend on the lengths of the operands.
Restrictions:
If you use -qintsize to change the default size of logicals, -qlog4 is ignored.
Syntax:
-qmaxmem=Kbytes MAXMEM(Kbytes)
Limits the amount of memory that the compiler allocates while performing specific, memory-intensive optimizations to the specified number of kilobytes. A value of -1 allows optimization to take as much memory as it needs without checking for limits.
Defaults
At the -O2 optimization level, the default -qmaxmem setting is 2048 KB. At the -O3 optimization level, the default setting is unlimited (-1).
Rules:
If the specified amount of memory is insufficient for the compiler to compute a particular optimization, the compiler issues a message and reduces the degree of optimization.
This option has no effect except in combination with the -O option.
When compiling with -O2, you only need to increase the limit if a compile-time message instructs you to do so. When compiling with -O3, you might need to establish a limit if compilation stops because the machine runs out of storage; start with a value of 2048 or higher, and decrease it if the compilation continues to require too much storage.
Notes:
Restrictions:
Depending on the source file being compiled, the size of subprograms in the source code, the machine configuration, and the workload on the system, setting the limit too high might fill up the paging space. In particular, a value of -1 can fill up the storage of even a well-equipped machine.
Related Information:
See -O Option and Chapter 8. Optimizing XL Fortran Programs.
Syntax:
-qmbcs | -qnombcs MBCS | NOMBCS
Indicates to the compiler whether character literal constants, Hollerith constants, H edit descriptors, and character string edit descriptors can contain Multibyte Character Set (MBCS) or Unicode characters.
This option is intended for applications that must deal with data in a multibyte language, such as Japanese.
To process the multibyte data correctly at run time, set the locale (through the LANG environment variable or a call to the libc setlocale routine) to the same value as during compilation.
Rules:
Each byte of a multibyte character is counted as a column.
Restrictions:
To read or write Unicode data, set the locale value to UNIVERSAL at run time. If you do not set the locale, you might not be able to interchange data with Unicode-enabled applications.
Syntax:
-qmixed | -qnomixed MIXED | NOMIXED
This is the long form of the -U Option.
Syntax:
-qmoddir=directory
Specifies the location for any module (.mod) files that the compiler writes.
Defaults
If you do not specify -qmoddir, the .mod files are placed in the current directory.
Related Information:
Modules are a Fortran 90/95 feature and are explained in the XL Fortran for AIX Language Reference.
To read the .mod files from this directory when compiling files that reference the modules, use the -I Option.
Syntax:
-qnoprint
Prevents the compiler from creating the listing file, regardless of the settings of other listing options.
Specifying -qnoprint on the command line enables you to put other listing options in a configuration file or @PROCESS directives, and still occasionally prevent the listing file from being created.
Rules:
A listing file is usually created when you specify any of the following options: -qattr, -qlist, -qlistopt, -qphsinfo, -qsource, -qreport, or -qxref. -qnoprint prevents the listing file from being created by changing its name to /dev/null, a device that discards any data that is written to it.
Related Information:
See Options That Control Listings and Messages.
Syntax:
-qnullterm | -qnonullterm NULLTERM | NONULLTERM
Appends a null character to each character constant expression that is passed as a dummy argument, to make it more convenient to pass strings to C functions.
This option allows you to pass strings to C functions without having to add a null character to each string argument.
Background Information:
This option affects arguments that are composed of any of the following objects: basic character constants; concatenations of multiple character constants; named constants of type character; Hollerith constants; binary, octal, or hexadecimal typeless constants when an interface block is available; or any character expression composed entirely of these objects. The result values from the CHAR and ACHAR intrinsic functions also have a null character added to them if the arguments to the intrinsic function are initialization expressions.
Rules:
This option does not change the length of the dummy argument, which is defined by the additional length argument that is passed as part of the XL Fortran calling convention.
Restrictions:
This option affects those arguments that are passed with or without the %REF built-in function, but not those that are passed using the %VAL built-in function. This option does not affect character expressions in input and output statements.
Examples
Here are two calls to the same C function, one with and one without the option:
@PROCESS NONULLTERM
SUBROUTINE CALL_C_1
CHARACTER*9, PARAMETER :: HOME = "/home/luc"
! Call the libc routine mkdir() to create some directories.
CALL mkdir ("/home/luc/testfiles\0", %val(448))
! Call the libc routine unlink() to remove a file in the home directory.
CALL unlink (HOME // "/.hushlogin" // CHAR(0))
END SUBROUTINE
@PROCESS NULLTERM
SUBROUTINE CALL_C_2
CHARACTER*9, PARAMETER :: HOME = "/home/luc"
! With the option, there is no need to worry about the trailing null
! for each string argument.
CALL mkdir ("/home/luc/testfiles", %val(448))
CALL unlink (HOME // "/.hushlogin")
END SUBROUTINE
!
Related Information:
See Passing Character Types Between Languages.
Syntax:
-qOBJect | -qNOOBJect OBJect | NOOBJect
Specifies whether to produce an object file, or to stop immediately after checking the syntax of the source files.
When debugging a large program that takes a long time to compile, you might want to use the -qnoobject option. It allows you to quickly check the syntax of a program without the overhead of code generation. The .lst file is still produced, so you can get diagnostic information to begin debugging.
After fixing any program errors, you can change back to the default (-qobject) to test whether the program works correctly. If it does not work correctly, compile with the -g option for interactive debugging.
The -qhalt option can override the -qobject option, and -qnoobject can override -qhalt.
Related Information:
See Options That Control Listings and Messages, and Object Section.
The Compiler Phases gives some technical information about the compiler phases.
Syntax:
-qonetrip | -qnoonetrip ONETRIP | NOONETRIP
This is the long form of the -1 Option.
Syntax:
-qOPTimize[=level] | -qNOOPTimize OPTimize[(level)] | NOOPTimize
This is the long form of the -O Option.
Syntax:
-qpdf{1|2}
Tunes optimizations through profile-directed feedback (PDF), where results from sample program execution are used to improve optimization near conditional branches and in frequently executed code sections.
To use PDF, follow these steps:
| Important: | Use data that is representative of the data that will be used during a normal run of your finished program. |
For best performance, use the -O3 or -O4 option with all compilations when you use PDF (as in the example above). With -O2 optimization, one of the most important PDF optimizations (which is moving code before branches to fill delay slots) is not done.
Rules:
The profile is placed in the current working directory, or the directory that the PDFDIR environment variable names, if that variable is set.
To avoid wasting compilation and execution time, make sure that the PDFDIR environment variable is set to an absolute path. Otherwise, you might run the application from the wrong directory so that it cannot locate the profile data files. When that happens, the program may not be optimized correctly or may be stopped by a segmentation fault. A segmentation fault might also happen if you change the value of the PDFDIR variable and execute the application before finishing the PDF process.
Background Information:
Because this option requires compiling the entire application twice, it is intended to be used after other debugging and tuning is finished, as one of the last steps before putting the application into production.
Restrictions:
Examples
Here is a simple example:
# Set the PDFDIR variable export PDFDIR=$HOME/project_dir # Compile all files with -qpdf1. xlf95 -qpdf1 -O3 file1.f file2.f file3.f # Run with one set of input data. a.out <sample.data # Recompile all files with -qpdf2. xlf95 -qpdf2 -O3 file1.f file2.f file3.f # The program should now run faster than without PDF, if # the sample data is typical.
Here is a more elaborate example:
# Set the PDFDIR variable export PDFDIR=$HOME/project_dir # Compile most of the files with -qpdf1. xlf95 -qpdf1 -O3 -c file1.f file2.f file3.f # This file is not so important to optimize. xlf95 -c file4.f # Non-PDF object files such as file4.o can be linked in. xlf95 -qpdf1 file1.o file2.o file3.o file4.o # Run several times with different input data. a.out <polar_orbit.data a.out <elliptical_orbit.data a.out <geosynchronous_orbit.data # Do not need to recompile the source of non-PDF object files (file4.f). xlf95 -qpdf2 -O3 file1.f file2.f file3.f # Link all the object files into the final application. xlf95 file1.o file2.o file3.o file4.o
Related Information:
See XL Fortran Input Files, XL Fortran Output Files, and Optimizing Conditional Branching.
The following commands, in the directory /usr/lpp/xlf/bin, are
available for managing the PDFDIR directory:
| resetpdf [pathname] | Sets to zeros all profiling information (but does not remove the data files) from
the pathname directory, or from the PDFDIR directory if
pathname is not specified, or from the current directory if PDFDIR is not
set.
When you make changes to the application and recompile some files, the profiling information for those files is automatically reset because the changes may alter the program flow. Run resetpdf to reset the profiling information for the entire application, after you make significant changes that may change execution counts for parts of the program that were not recompiled. |
| cleanpdf [pathname] | Removes all profiling information from the pathname directory,
or from the PDFDIR directory if pathname is not specified,
or from the current directory if PDFDIR is not set.
Removing the profiling information reduces the run-time overhead if you change the program and then go through the PDF process again. Run this program after compiling with -qpdf2, or after finishing with the PDF process for a particular application. If you continue using PDF with an application after running cleanpdf, you must recompile all the files with -qpdf1. |
Syntax:
-qphsinfo | -qnophsinfo PHSINFO | NOPHSINFO
Determines whether timing information is displayed on the terminal for each compiler phase.
Related Information:
Syntax:
-qposition={appendold | appendunknown} ...
POSITION({APPENDOLD | APPENDUNKNOWN} ...)
Positions the file pointer at the end of the file when data is written after an OPEN statement with no POSITION= specifier, and the corresponding STATUS= value (OLD or UNKNOWN) is specified.
Rules:
The position becomes APPEND when the first I/O operation moves the file pointer, if that operation is a WRITE or PRINT statement. If it is a BACKSPACE, ENDFILE, READ, or REWIND statement instead, the position is REWIND.
Applicable Product Levels:
The appendunknown suboption is the same as the XL Fortran Version 2 append suboption, but we recommend using appendunknown to avoid ambiguity.
-qposition=appendold:appendunknown provides compatibility with XL Fortran Version 1 and early Version 2 behavior. -qposition=appendold provides compatibility with XL Fortran Version 2.3 behavior.
Examples
xlf95 -qposition=appendold opens_old_files.f xlf95 -qposition=appendunknown opens_unknown_files.f xlf95 -qposition=appendold:appendunknown opens_many_files.f
Related Information:
See File Positioning and the section on the OPEN statement in the XL Fortran for AIX Language Reference.
Syntax:
-qqcount | -qnoqcount QCOUNT | NOQCOUNT
Accepts the Q character-count edit descriptor (Q) as well as the extended-precision Q edit descriptor (Qw.d). With -qnoqcount, all Q edit descriptors are interpreted as the extended-precision Q edit descriptor.
Rules:
The compiler interprets a Q edit descriptor as one or the other depending on its syntax, and issues a warning if it cannot determine which one is specified.
Related Information:
See "Q (Character Count) Editing" in the XL Fortran for AIX Language Reference.
Syntax:
-qrealsize=bytes REALSIZE(bytes)
Sets the default size of REAL, DOUBLE PRECISION, COMPLEX, and DOUBLE COMPLEX values.
This option is intended for maintaining compatibility with code that is written for other systems. You may find it useful as an alternative to -qautodbl in some situations.
The option affects the sizes (3) of constants, variables, derived type components, and functions (which include intrinsic functions) for which no kind type parameter is specified. Objects that are declared with a kind type parameter or length, such as REAL(4) or COMPLEX*16, are not affected.
Arguments:
The allowed values for bytes are:
Results
This option determines the sizes of affected objects as follows:
Data Object REALSIZE(4) in Effect REALSIZE(8) in Effect ------------------------------------------------------------------- 1.2 REAL(4) REAL(8) 1.2e0 REAL(4) REAL(8) 1.2d0 REAL(8) REAL(16) 1.2q0 REAL(16) REAL(16) REAL REAL(4) REAL(8) DOUBLE PRECISION REAL(8) REAL(16) COMPLEX COMPLEX(4) COMPLEX(8) DOUBLE COMPLEX COMPLEX(8) COMPLEX(16)
Similar rules apply to intrinsic functions:
This option is intended to allow you to port programs unchanged from systems that have different default sizes for data. For example, you might need -qrealsize=8 for programs that are written for a CRAY computer. The default value of 4 for this option is suitable for programs that are written specifically for many 32-bit computers.
Setting -qrealsize to 8 overrides the setting of the -qdpc option.
Examples
This example shows how changing the -qrealsize setting transforms some typical entities:
@PROCESS REALSIZE(8)
REAL R ! treated as a real(8)
REAL(8) R8 ! treated as a real(8)
DOUBLE PRECISION DP ! treated as a real(16)
DOUBLE COMPLEX DC ! treated as a complex(16)
COMPLEX(4) C ! treated as a complex(4)
PRINT *,DSIN(DP) ! treated as qsin(real(16))
! Note: we cannot get dsin(r8) because dsin is being treated as qsin.
END
Specifying -qrealsize=8 affects intrinsic functions, such as DABS, as follows:
INTRINSIC DABS ! Argument and return type become REAL(16)
DOUBLE PRECISION DABS ! OK, because DOUBLE PRECISION = REAL(16)
! with -qrealsize=8 in effect.
REAL(16) DABS ! OK, the declaration agrees with the option setting.
REAL(8) DABS ! The declaration does not agree with the option
! setting and is ignored.
Related Information:
-qintsize Option is a similar option that affects integer and logical objects. -qautodbl Option is related to -qrealsize, although you cannot combine the options. When the -qautodbl option turns on automatic doubling, padding, or both, the -qrealsize option has no effect.
"Type Parameters and Specifiers" in the XL Fortran for AIX Language Reference discusses kind type parameters.
Syntax:
-qrecur | -qnorecur RECUR | NORECUR
Not recommended. Specifies whether external subprograms may be called recursively. For new programs, use the RECURSIVE keyword, which provides a standard-conforming way of using recursive procedures. If you specify the -qrecur option, the compiler must assume that any procedure could be recursive. Code generation for recursive procedures may be less efficient. Using the RECURSIVE keyword allows you to specify exactly which procedures are recursive.
Examples
! The following RECUR recursive function:
@process recur
function factorial (n)
integer factorial
if (n .eq. 0) then
factorial = 1
else
factorial = n * factorial (n-1)
end if
end function factorial
! can be rewritten to use F90/F95 RECURSIVE/RESULT features:
recursive function factorial (n) result (res)
integer res
if (n .eq. 0) then
res = 1
else
res = n * factorial (n-1)
end if
end function factorial
Restrictions:
If you use the xlf, xlf_r, xlf_r7, or f77 command to compile programs that contain recursive calls, specify -qnosave to make the default storage class automatic.
Syntax:
-qreport[={smplist | hotlist}...]
-qnoreport
REPORT[({SMPLIST | HOTLIST}...)] NOREPORT
Determines whether to produce transformation reports showing how the program is parallelized and how loops are optimized.
You can use the smplist suboption to debug or tune the performance of SMP programs by examining the low-level transformations. You can see how the program deals with data, and the automatic parallelization of loops. Comments within the listing tell you how the transformed program corresponds to the original source code, and includes information as to why certain loops were not parallelized.
You can use the hotlist suboption to generate a report showing how loops are transformed.
In addition, if the -qreport=hotlist option is specified when the -qsmp option is in effect, a pseudo-Fortran listing will be produced that shows the calls to the SMP runtime, and the procedures created for parallel constructs.
Background Information:
The transformation listing is part of the compiler listing file.
Restrictions:
You must specify the -qsmp or the -qhot option to generate a loop transformation listing. You must specify the -qsmp option to generate a parallel transformation listing or parallel performance messages.
The code that the listing shows is not intended to be compilable. Do not include any of this code in your own programs, or explicitly call any of the internal routines whose names appear in the listing.
Examples
To produce a listing file that you can use to tune parallelization:
xlf_r -qsmp -O3 -qhot -qreport=smplist needs_tuning.f
To produce a listing file that you can use to tune both parallelization and loop performance:
xlf_r -qsmp -O3 -qhot -qreport=smplist:hotlist needs_tuning.f
To produce a listing file that you can use to tune only the performance of loops:
xlf95_r -O3 -qhot -qreport=hotlist needs_tuning.f
Related Information:
See Options That Control Listings and Messages and Transformation Report Section.
Syntax:
-qsaa | -qnosaa SAA | NOSAA
Checks for conformance to the SAA FORTRAN language definition. It identifies nonconforming source code and also options that allow such nonconformances.
Rules:
These warnings have a prefix of (L), indicating a problem with the language level.
The -qflag option can override this option.
Related Information:
With the growing importance of international standards, the -qlanglvl Option may be more suitable for checking language conformance.
Syntax:
-qsave | -qnosave SAVE | NOSAVE
Specifies the default storage class for local variables: -qsave sets the default storage class to STATIC, while -qnosave sets it to AUTOMATIC.
Because the default for this option is -qnosave, you may need to specify -qsave to duplicate the behavior of FORTRAN 77 programs. The xlf_r, xlf_r7, xlf, and f77 commands have -qsave listed as a default option in /etc/xlf.cfg to preserve the previous behavior.
Related Information:
The -qnosave option is usually necessary for subprograms that are compiled with the -qrecur Option.
See "Storage Classes for Variables" in the XL Fortran for AIX Language Reference for information on how this option affects the storage class of variables.
Syntax:
-qsigtrap[=trap_handler]
When you are compiling a file that contains a main program, this option sets up the specified trap handler to catch SIGTRAP exceptions. This option enables you to install a handler for SIGTRAP signals without calling the SIGNAL subprogram in the program.
To enable the xl_ _trce trap handler, specify -qsigtrap without a handler name. To use a different trap handler, specify its name with the -qsigtrap option.
If you specify a different handler, ensure that the object module that contains it is linked with the program.
An exception occurs when the program executes a trap instruction.
Related Information:
The possible causes of exceptions are described in XL Fortran Run-Time Exceptions. Detecting and Trapping Floating-Point Exceptions describes a number of methods for dealing with exceptions that result from floating-point computations. Installing an Exception Handler lists the exception handlers that XL Fortran supplies.
Syntax:
-qsmp[=suboptions] -qnosmp
Indicates that code should be produced for an SMP system. The default is to produce code for a uniprocessor machine. When you specify this option, the compiler recognizes all directives with the trigger constants SMP$, $OMP, and IBMP (unless you specify the omp suboption).
Rules:
Arguments:
Note that the implementation of the nested_par suboption does not comply with the OpenMP Fortran API. If you specify this suboption, the run-time library uses the same threads for the nested PARALLEL DO and PARALLEL SECTIONS constructs that it used for the enclosing PARALLEL constructs.
When a thread becomes free, it takes the next chunk from its initially assigned partition. If there are no more chunks in that partition, then the thread takes the next available chunk from a partition initially assigned to another thread.
The work in a partition initially assigned to a sleeping thread will be completed by threads that are active.
Active threads are assigned these chunks on a "first-come, first-do" basis. Chunks of the remaining work are assigned to available threads, until all work has been assigned.
If a thread is asleep, its assigned work will be taken over by an active thread, once that thread becomes available.
The first chunk contains CEILING(number_of_iterations / number_of_threads) iterations. Subsequent chunks consist of CEILING(number_of_iterations_remaining / number_of_threads) iterations. Active threads are assigned chunks on a "first-come, first-do" basis.
If you have not specified n, the chunks will contain CEILING(number_of_iterations / number_of_threads) iterations. Each thread is assigned one of these chunks. This is known as block scheduling.
If a thread is asleep and it has been assigned work, it will be awakened so that it may complete its work.
For more information on chunking algorithms and SCHEDULE, refer to the "Directives" chapter in the XL Fortran for AIX Language Reference.
Rules:
Restrictions:
Within the same -qsmp specification, you cannot specify the omp suboption before or after certain suboptions. The compiler issues warning messages and ignores the following suboptions if you attempt to specify them with omp:
Examples
If you specify the following, the compiler recognizes both the $OMP and SMP$ directive triggers, and issues a warning if a directive specified with either trigger is not allowed in OpenMP:
-qsmp=omp -qdirective=SMP$
If you specify the following, the noauto, nonestedpar, and schedule=runtime suboptions are used; the compiler issues a warning message and ignores the auto suboption:
-qsmp=omp:auto
Related Information:
If you use the xlf, xlf_r, xlf_r7, or f77 command with the -qsmp option to compile programs, specify -qnosave to make the default storage class automatic.
Syntax:
-qsource | -qnosource SOURCE | NOSOURCE
Determines whether to produce the source section of the listing.
This option displays on the terminal each source line where the compiler detects a problem, which can be very useful in diagnosing program errors in the Fortran source files.
You can selectively print parts of the source code by using SOURCE and NOSOURCE in @PROCESS directives in the source files around those portions of the program you want to print. This is the only situation where the @PROCESS directive does not have to be before the first statement of a compilation unit.
Examples
In the following example, the point at which the incorrect call is made is identified more clearly when the program is compiled with the -qsource option.
$ cat argument_mismatch.f
subroutine mult(x,y)
integer x,y
print *,x*y
end
program wrong_args
interface
subroutine mult(a,b) ! Specify the interface for this
integer a,b ! subroutine, so that calls to it
end subroutine mult ! can be checked.
end interface
real i,j
i = 5.0
j = 6.0
call mult(i,j)
end
$ xlf95 argument_mismatch.f
** mult === End of Compilation 1 ===
"argument_mismatch.f", line 16.12: 1513-061 (S) Actual argument attributes
do not match those specified by an accessible explicit interface.
** wrong_args === End of Compilation 2 ===
1501-511 Compilation failed for file argument_mismatch.f.
$ xlf95 -qsource argument_mismatch.f
** mult === End of Compilation 1 ===
16 | call mult(i,j)
............a...
a - 1513-061 (S) Actual argument attributes do not match those specified by
an accessible explicit interface.
** wrong_args === End of Compilation 2 ===
1501-511 Compilation failed for file argument_mismatch.f.
|
Related Information:
See Options That Control Listings and Messages and Source Section.
Syntax:
-qspillsize=bytes SPILLSIZE(bytes)
-qspillsize is the long form of -NS. See -N Option.
Syntax:
-qstrict | -qnostrict STRICT | NOSTRICT
Ensures that optimizations done by the -O3 -qhot, and -qipa options do not alter the semantics of a Fortran 90 or Fortran 95 program.
Defaults
By default, -O3 and -qhot optimizations may rearrange code so that results or exceptions are different from those of unoptimized programs.
This option is intended for situations where the changes in program execution in optimized programs produce different results from unoptimized programs. Such situations are likely rare because they involve relatively little-used rules for IEEE floating-point arithmetic.
Rules:
With -O3 or -qhot in effect, the following optimizations are turned on unless -qstrict is also specified:
Related Information:
See -O Option, -qhot Option, and -qfloat Option.
Syntax:
-qSTRICT_INDUCtion | -qNOSTRICT_INDUCtion
Prevents the compiler from performing induction (loop counter) variable optimizations. These optimizations may be unsafe (may alter the semantics of your program) when there are integer overflow operations involving the induction variables.
You should avoid specifying -qstrict_induction, unless absolutely necessary, as it may cause performance degradation.
Examples
Consider the following two examples:
Example 1
integer(1) :: i, j ! variable i can hold a maximum value of 127
j = 0
do i = 1, 200 ! integer overflow occurs when 128th iteration of loop
j = j + 1 ! is attempted
enddo
Example 2
integer(1) :: i
i = 1_1 ! variable i can hold a maximum value of 127
100 continue
if (i == -127) goto 200 ! go to label 200 once decimal overflow occurs
i = i + 1_1 ! and i == -127
goto 100
200 continue
print *, i
end
If you compile these examples with the -qstrict_induction option, the compiler does not perform induction variable optimizations, but the performance of the code may be affected. If you compile the examples with the -qnostrict_induction option, the compiler may perform optimizations that may alter the semantics of the programs.
Syntax:
-qsuffix=option=suffix
Specifies the source-file suffix on the command line instead of in the xlf.cfg file. This option saves time for the user by permitting files to be used as named with minimal makefile modifications, and removes the risk of problems associated with modifying the xlf.cfg file. Only one setting is supported at any one time for any particular file type.
Arguments:
Rules:
Examples
For instance,
xlf a.f90 -qsuffix=f=f90:cpp=F90
will cause these effects:
Syntax:
-qsuppress=nnnn-mmm[:nnnn-mmm ...] -qnosuppress
where nnnn-mmm is a compiler message number.
Background Information:
In some situations, users may receive an overwhelming number of compiler messages. In many cases, these compiler messages contain important information. However, some messages contain information that is either redundant or can be safely ignored. When multiple error or warning messages appear during compilation, it can be very difficult to distinguish which messages should be noted. By using -qsuppress, you can eliminate messages that do not interest you.
Rules:
Restrictions:
Examples
@process nullterm
i = 1; j = 2;
call printf("i=%d\n",%val(i));
call printf("i=%d, j=%d\n",%val(i),%val(j));
end
Compiling this sample program would normally result in the following output:
"t.f", line 4.36: 1513-029 (W) The number of arguments to "printf" differ from the number of arguments in a previous reference. You should use the OPTIONAL attribute and an explicit interface to define a procedure with optional arguments. ** _main === End of Compilation 1 === 1501-510 Compilation successful for file t.f.
When compiled with -qsuppress=1513-029, the output is:
** _main === End of Compilation 1 === 1510-510 Compilation successful for file t.f.
Related Information:
For another type of message suppression, see -qflag Option.
Syntax:
-qtbtable={none | small | full}
Limits the amount of debugging traceback information in object files, to reduce the size of the program.
You can use this option to make your program smaller, at the cost of making it harder to debug. When you reach the production stage and want to produce a program that is as compact as possible, you can specify -qtbtable=none. Otherwise, the usual defaults apply: code compiled with -g or without -O has full traceback information (-qtbtable=full), and code compiled with -O contains less (-qtbtable=small).
Background Information:
This option is most suitable for programs that contain many long procedure names, such as the internal names constructed for module procedures. You may find it more applicable to C++ programs than to Fortran programs.
To use the performance tools, such as tprof, in the AIX Performance Toolbox, you must compile the Fortran programs with -qtbtable=full.
Related Information:
See -g Option, -O Option, Debugging Optimized Code, and -qcompact Option.
Syntax:
-qthreaded
Used by the compiler to determine when it must generate thread-safe code.
The -qthreaded option does not imply the -qnosave option. The -qnosave option specifies a default storage class of automatic for user local variables. In general, both of these options need to be used to generate thread-safe code.
Defaults
-qthreaded is the default for the xlf90_r, xlf90_r7, xlf95_r, xlf95_r7, xlf_r, and xlf_r7 commands.
Specifying the -qthreaded option implies -qdirective=ibmt, and by default the trigger_constant IBMT is recognized.
Syntax:
-qtune=implementation
Tunes instruction selection, scheduling, and other implementation-dependent performance enhancements for a specific implementation of a hardware architecture.
pwrx is a synonym for pwr2, but pwr2 is preferred.
| For 64-bit Users |
|---|
|
For -qtune options and information particular to the 64-bit environment, please see -qtune=rs64a Option and -qtune=rs64b Option. |
By arranging (scheduling) the generated machine instructions to take maximum advantage of hardware features such as cache size and pipelining, this option can improve performance. It only has an effect when used in combination with the -O option.
Although changing the -qtune setting may affect the performance of the resulting executable, it has no effect on whether the executable can be executed correctly on a particular hardware platform.
If you do not specify -qtune, its setting is determined by the
setting of the -qarch option, as follows:
| -qarch Setting | Allowed -qtune Settings | Default -qtune Setting |
|---|---|---|
com (if you specify -q32) | pwr, pwr2/pwrx, pwr3, pwr2s, p2sc, rs64a, rs64b, 601, 603, 604 |
pwr2 (if you specify -q32) |
| pwr | pwr, pwr2/pwrx, pwr2s, p2sc, 601 | pwr2 |
| pwr2/pwrx | pwr2/pwrx, p2sc, pwr2s | pwr2/pwrx |
| pwr3 | pwr3 | pwr3 |
| ppc | rs64a, rs64b, 601, 603, 604, pwr3 |
pwr3 (if you specify -q64) 604 (if you specify -q32) |
| p2sc | p2sc | p2sc |
| pwr2s | pwr2s | pwr2s |
| rs64a | rs64a | rs64a |
| rs64b | rs64b | rs64b |
| 601 | 601 | 601 |
| 603 | 603 | 603 |
| 604 | 604 | 604 |
Note that you can specify any -qtune suboption with -qarch=auto, as long as you are compiling on a machine that is compatible with the -qtune suboption. For example, if you specify -qarch=auto and -qtune=pwr3, you must compile on a POWER3 machine.
Restrictions:
Because reducing quad-word instructions may degrade performance on other POWER2 models, we do not recommend the pwr2s suboption for programs that will be run on a number of different POWER2 models. If the program will be run on a set of different POWER2 models, leave the -qtune setting as pwr2.
Related Information:
See -qarch Option, -qcache Option, and Compiling for POWER3, POWER2, or PowerPC Systems.
Syntax:
-qundef | -qnoundef UNDEF | NOUNDEF
-qundef is the long form of the -u Option.
See -qwarn64 Option.
Syntax:
-qxflag=oldtab XFLAG(OLDTAB)
Interprets a tab in columns 1 to 5 as a single character (for fixed-form programs), for compatibility with XL Fortran Version 1.
Defaults
By default, the compiler allows 66 significant characters on a source line after column 6. A tab in columns 1 through 5 is interpreted as the appropriate number of blanks to move the column counter past column 6. This default is convenient for those who follow the earlier Fortran practice of including line numbers or other data in columns 73 through 80.
Rules:
If you specify the option -qxflag=oldtab, the source statement still starts immediately after the tab, but the tab character is treated as a single character for counting columns. This setting allows up to 71 characters of input, depending on where the tab character occurs.
Syntax:
-qxflag=xalias XFLAG(XALIAS)
Obsolete: replaced by -qalias=nostd. See -qalias Option instead.
Syntax:
-qxlf77=settings XLF77(settings)
Provides backward compatibility with the language from XL Fortran Versions 1 and 2, for aspects of language semantics and I/O data format that have changed. Most of these changes are required by the Fortran 90 standard.
Defaults
By default, the compiler uses settings that apply to Fortran 95, Fortran 90, and the most recent compiler version in all cases: the default suboptions are blankpad, nogedit77, nointarg, nointxor, leadzero, nooldboz, nopersistent, and nosofteof. However, these defaults are only used by the xlf95, xlf95_r, xlf95_r7, xlf90, xlf90_r, and xlf90_r7 commands, which you should use to compile new programs.
For maximum compatibility for programs and data created for XL Fortran Versions 1 and 2, the xlf, xlf_r, xlf_r7 and f77 commands use the opposite settings for this option.
If you only want to compile and run old programs unchanged, you can continue to use the appropriate invocation command and not concern yourself with this option. You should only use this option if you are using existing source or data files with Fortran 90 or Fortran 95 and the xlf90, xlf90_r, xlf90_r7, xlf95, xlf95_r or xlf95_r7 command, and find some incompatibility because of behavior or data format that has changed since XL Fortran Version 2. Eventually, you should be able to recreate the data files or modify the source files to remove the dependency on the old behavior.
Arguments:
To get various aspects of XL Fortran Version 2 behavior, select the nondefault choice for one or more of the following suboptions. The descriptions explain what happens when you specify the nondefault choices.
Otherwise, the .XOR. operator is only recognized as a defined operator. The intrinsic operation is not accessible, and the precedence depends on whether the operator is used in a unary or binary context.
Related Information:
See Avoiding or Fixing Upgrade Problems.
Syntax:
-qxlf90={settings}
XLF90({settings})
Provides backward compatibility with the language from XL Fortran Version 5 and with the Fortran 90 standard, for certain aspects of the language.
Defaults
The default suboptions for -qxlf90 depend on the invocation command that you specify. For the xlf95, xlf95_r, and xlf95_r7 commands, the default suboptions are signedzero and autodealloc. For all other invocation commands, the defaults are nosignedzero and noautodealloc.
Arguments:
This suboption also determines whether a minus sign is printed in the following cases:
Examples
Consider the following program:
PROGRAM TESTSIGN REAL X, Y, Z X=1.0 Y=-0.0 Z=SIGN(X,Y) PRINT *,Z END PROGRAM TESTSIGN
The output from this example depends on the invocation command and the -qxlf90 suboption that you specify. For example:
| Invocation Command/xlf90 Suboption | Output |
|---|---|
| xlf95 | -1.0 |
| xlf95 -qxlf90=signedzero | -1.0 |
| xlf95 -qxlf90=nosignedzero | 1.0 |
| xlf90 | 1.0 |
| xlf | 1.0 |
Related Information:
See the section on SIGN in the "Intrinsic Procedures" chapter and the "Arrays Concepts" chapter of the XL Fortran for AIX Language Reference.
Syntax:
-qxref[=full] | -qnoxref XREF[(FULL)] | NOXREF
Determines whether to produce the cross-reference component of the attribute and cross-reference section of the listing.
If you specify only -qxref, only identifiers that are used are reported. If you specify -qxref=full, the listing contains information about all identifiers that appear in the program, whether they are used or not.
If -qxref is specified after -qxref=full, the full cross-reference listing is still produced.
You can use the cross-reference listing during debugging to locate problems such as using a variable before defining it, or entering the wrong name for a variable.
Related Information:
See Options That Control Listings and Messages and Attribute and Cross-Reference Section.
Syntax:
-qzerosize | -qnozerosize ZEROSIZE | NOZEROSIZE
Improves performance of FORTRAN 77 and some Fortran 90 and Fortran 95 programs by preventing checking for zero-sized character strings and arrays.
For Fortran 90 and Fortran 95 programs that might process such objects, use -qzerosize. For FORTRAN 77 programs, where zero-sized objects are not allowed, or for Fortran 90 and Fortran 95 programs that do not use them, compiling with -qnozerosize can improve the performance of some array or character-string operations.
Defaults
The default setting depends on which command invokes the compiler: -qzerosize for the xlf90, xlf90_r, xlf90_r7, xlf95, xlf95_r, and xlf95_r7 commands, and -qnozerosize for the xlf, xlf_r, xlf_r7, and f77 commands (for compatibility with FORTRAN 77).
Rules:
Run-time checking performed by the -C option takes slightly longer when -qzerosize is in effect.
Syntax:
-S
Produces one or more .s files, showing equivalent assembler source for each Fortran source file.
Rules:
When this option is specified, the compiler produces the assembler source files as output instead of an object or an executable file.
Restrictions:
The generated assembler files do not include all the data that is included in a .o file by -qipa or -g.
Examples
xlf95 -O3 -qhot -S test.f # Produces test.s
Related Information:
The -o Option can be used to specify a name for the resulting assembler source file.
For information about the assembler-language format, see the Assembler Language Reference.
Syntax:
-tcomponents
Applies the prefix specified by the -B option to the designated components. components can be one or more of p, F, c, d, I, a, h, b, z, or l, with no separators, corresponding to an optimizing preprocessor, the C preprocessor, the compiler, the -S disassembler, the interprocedural analysis (IPA) tool, the assembler, the loop optimizer, the code generator, the binder (fast linker), and the linker, respectively.
Rules:
If -t is not specified, any -B prefix is applied to all components.
Component -t Standard Program Name
Mnemonic
C preprocessor F cpp
VAST-2 preprocessor p fpp
KAP preprocessor p fppk
compiler front end c xlfentry
loop optimizer h xlfhot
IPA processor I ipa
assembler a as
code generator b xlfcode
linker l ld
-S disassembler d dis
binder (fast linker) z bolt
Related Information:
See -B Option (which includes an example).
Syntax:
-U MIXED | NOMIXED
Makes the compiler sensitive to the case of letters in names.
You can use this option when writing mixed-language programs, because Fortran names are all lowercase by default, while names in C and other languages may be mixed-case.
Rules:
If -U is specified, case is significant in names. For example, the names Abc and ABC refer to different objects.
The option changes the link names used to resolve calls between compilation units. It also affects the names of modules, and thus the names of their .mod files.
Defaults
By default, the compiler interprets all names as if they were in lowercase. For example, Abc and ABC are both interpreted as abc, and so refer to the same object.
Restrictions:
The names of intrinsics must be all in lowercase when -U is in effect. Otherwise, the compiler may accept the names without errors, but the compiler considers them the names of external procedures rather than intrinsics.
The XL Fortran Version 2 requirement that keywords be all lowercase no longer applies.
Related Information:
This is the short form of -qmixed. See -qmixed Option.
Syntax:
-u UNDEF | NOUNDEF
Specifies that no implicit typing of variable names is permitted. It has the same effect as using the IMPLICIT NONE statement in each scope that allows implicit statements.
Defaults
By default, implicit typing is allowed.
Related Information:
See "IMPLICIT" in the XL Fortran for AIX Language Reference.
This is the short form of -qundef. See -qundef Option.
Syntax:
-v
Generates information on the progress of the compilation.
Rules:
As the compiler executes commands to perform different compilation steps, this option displays a simulation of the commands it calls and the system argument lists it passes.
Examining the output of this option can help you to determine, for a particular compilation:
Related Information:
-# Option is similar to -v, but does not actually execute any of the compilation steps.
Syntax:
-V
This option is the same as -v, except that you can cut and paste from the display directly to create a command.
Syntax:
-Wcomponent,options
Passes the listed options to a component that is executed during compilation. component is p, F, c, d, I, a, z, or l, corresponding to an optimizing preprocessor, the C preprocessor, the compiler, the -S disassembler, the interprocedural analysis (IPA) tool, the assembler, the binder (fast linker), and the linker, respectively.
In the string following the -W option, use a comma as the separator and do not include any spaces.
Background Information:
The primary purpose of this option is to construct sequences of compiler options to pass to one of the optimizing preprocessors. It can also be used to fine-tune the link-edit step by passing parameters to the ld command.
Defaults
You do not need the -W option to pass most options to the linker: unrecognized command-line options, except -q options, are passed to it automatically. Only linker options with the same letters as compiler options, such as -v or -S, strictly require -W (or the ldopts stanza in the configuration file).
If you need to include a character that is special to the shell in the option string, precede the character with a backslash.
Examples
See Passing Command-Line Options to the ld or as Commands.
Syntax:
-w
A synonym for the -qflag Option. It sets -qflag=e:e, suppressing warning and informational messages, as well as those generated by language-level checking.
Syntax:
-y{n | m | p | z}
IEEE(Near | Minus | Plus | Zero)
Specifies the rounding mode for the compiler to use when evaluating constant floating-point expressions at compile time. It is equivalent to the -qieee option.
Related Information:
See -O Option and -qfloat Option.
-y is the short form of -qieee Option.
(2) In Fortran 90/95 terminology, these values are referred to as kind type parameters.
(3) In Fortran 90/95 terminology, these values are referred to as kind type parameters.
