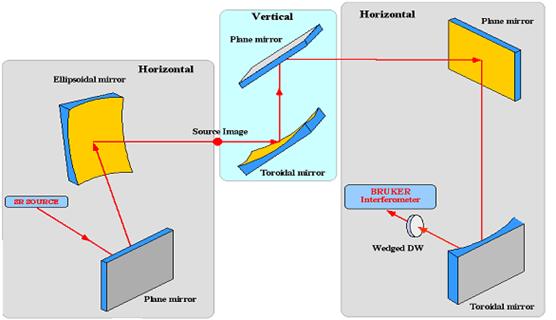

SINBAD-IR  Optical Layout

Mirror M1 planar (copper), M2 ellipsoid, M3 toroidal, M4 planar,M5 planar, M6 parabolic,

diamond window at the focal point

Specchi della linea SINBAD


 M1 plane mirrorM5 plane mirrorM3 toroidal mirror
 M1 and M5 plane mirrors, M3 toroidal mirror
